Recap of Useful Formulas
The following formulas will be very useful for solving Problems around Gravity (in part 1).Universal Law of Gravitation
where:
- d is the distance of the COMs of the two masses m1 and m2
- G is the Gravitation Constant which equals 6.674 × 10-11 N
Weight or Force of Gravity
Gravitational Acceleration
where:
- r can be thought of as the median radius of a planet
- h as the height of an object in respect to the surface of the planet
Gravitational Attraction of the Earth in Various Heights (based on Ref1 Sample Problems)
Let's consider a person of mass m = 60 Kg is inside the Gravitational Field of the Earth (which has a mass of M = 5.98 x 1024 Kg and radius of r = 6.38 x 106 m).
Calculate the Force of Gravity that the Earth exerts on the person when:
- The person is standing at sea-level (distance to the center of the earth equal to the radius r)
- The person is standing at the peak of Mount Everest (highest altitude above mean sea level is h = 8,848 m
- The person is on an airplane that flies at about h = 12 km above sea-level
1. Sea-Level
2. Mount Everest
3. Airplane
The difference is minimal on so even using the value g = 9.8 m/s2 for Earth would be sufficient enough as it gives:
Calculating the Mass of the Earth
Knowing that the equatorial radius of the Earth is RE = 6.380 Km and the Gravitational acceleration is g = 9.8 m/s2, can we somehow calculate the mass of the Earth?
Solution
Let's consider a test-mass of mass m = 1 Kg.
Solving the equation of gravitational acceleration g for the mass of the Earth ME we have:
Multiple Attractors and Force of Gravity
One-Dimensional Problem
Let's consider the following problem:
[Custom Figure using draw.io]
Calculate the total force of gravity excelled on sphere m by the two spheres with equal mass M if d1 is greater than d2.
The result will be an expression of m, M, d1 and d2.
Solution
Because d1 > d2 we already know that F1 < F2.
Thus, the total force will be ΣF = F2 - F1.
Using the Universal Law of Gravitation we have:
The difference of squares a2 - b2 = (a + b)(a - b) is useful when more than 2 masses attract the object, as it simplifies the result by a lot.
Two-Dimensional Problem
Let's consider the following problem:

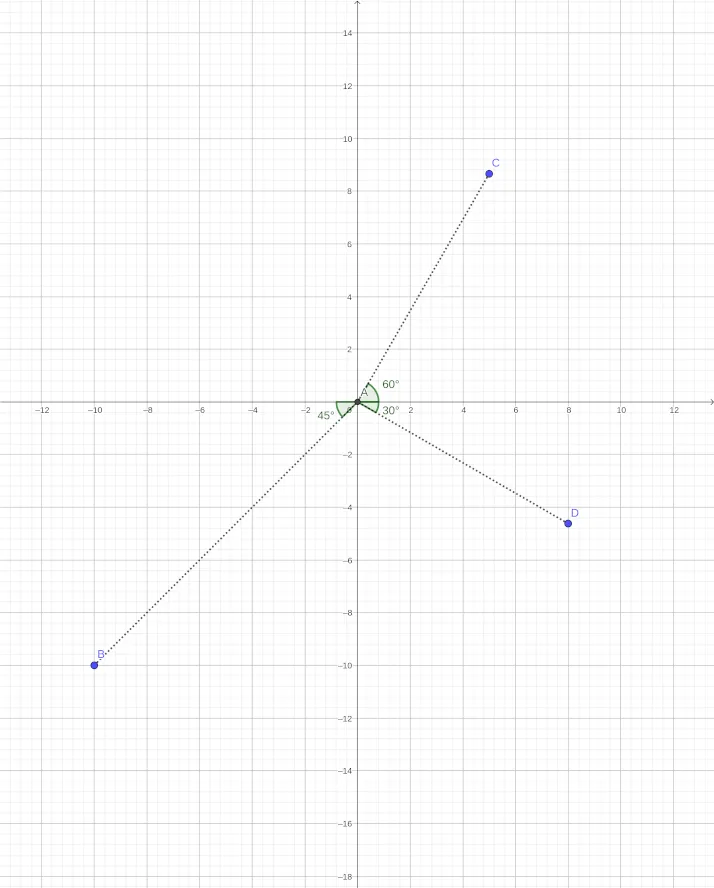

[Custom Figure using GeoGebra]
In this figure, A (0, 0), B (-10, -10), C (5, 8.66) and D (8, -4.618) represent the centers of mass of the point masses: mA = 4 Kg, mB = 11 Kg, mC = 9 Kg and mD = 7 Kg.
The distance of mass A to each of the other masses is dAB = 14.14 m, dAC = 10 m and dAD = 9.24 m.
The Force of Gravitational Attraction from the masses B, C and D towards A, has an angle of β = 45°, γ = 60° and δ = 30° correspondingly, always in respect to the horizontal or x-axis.
Solution
Using the Universal Law of Gravitation we can calculate the force of attraction of each mass B, C and D towards A:
In order to calculate the sum of those forces we have to split the forces into two components: one for the horizontal axis and one for the vertical axis.
The components are defined easily using Trigonometric Functions:
In the case of the force FB which attracts mass A towards mass B we have the following components:
(The results are negative because sin and cos have negative values in the 3rd Quadrant)
Similarly, for force FC from mass C we have:
Lastly, for force FD from mass D we have:
(The trigonometric function sin is negative in the 4th Quadrant, whilst cos is positive)
The signs shows us where the vectors are pointing (left-right and up-down).
Now that we have the components we can easily calculate the components of ΣF: ΣFx and ΣFy as:
Thus, the total force is:
and with an angle of:
