Quantum Confinement : Particle in a 2D box and 3D box

Greetings to everyone! In the previous blog on the ongoing series on quantum mechanics we have studied about significance of wavefunction and wavefunction plots for 1D box. Today, we shall study the 2D and 3D box and will see how to find out the wavefunction and energy values. How we can apply the same concept from the 1D box and derive the equations for 2D and 3D box.

Copy of Copy of Stemsocial ChemFam DEC (11).gif

Particle in a 2D Box

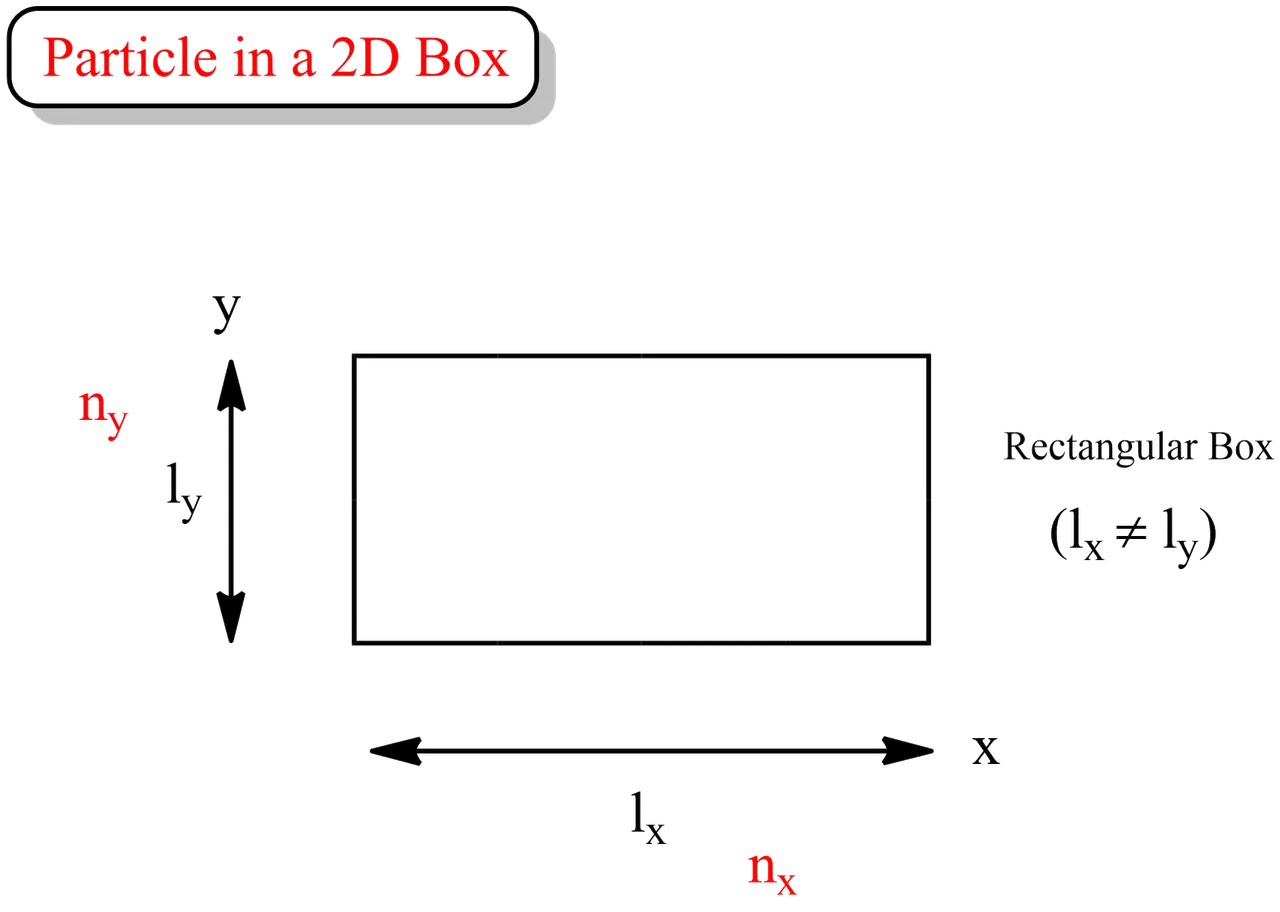

Imagine a particle, such as an electron, confined within a two-dimensional box, having length l_x and l_y in x and y direction. According to the principles of quantum mechanics, the particle's wave function is quantized within the box, leading to discrete energy levels. The Schrödinger equation governs this system, providing a mathematical framework to describe the particle's behavior.

2D box.png

If we are to derive expression for wavefunction of the said particle in that 2D box, then we can do that by applying the same concept that we have learnt in the case for 1D box. Your forgot? No worries, I've got you.

We have also studied that wavefunctions are multiplicative in nature. So we can multiply the wavefunctions for both x, i.e., Ψ(x) and y direction i.e., Ψ(y) to find out the Ψ(x,y).

Now, we also know from previous studies that energy is additive in nature. So, from the energies of E(x) and E(y), we an find out the energy E(x,y) by simple addition.
math-20240204 (1).png

And for a square box, we get the above expression for wavefunction.

Mostly, we assume particle in a square 2D box, when the question only mentions particle in a 2D box. If it is not mentioned in the question whether the box is rectangular or a squared one, it is always preferential to go with a square box.

Particle in a 3D Box

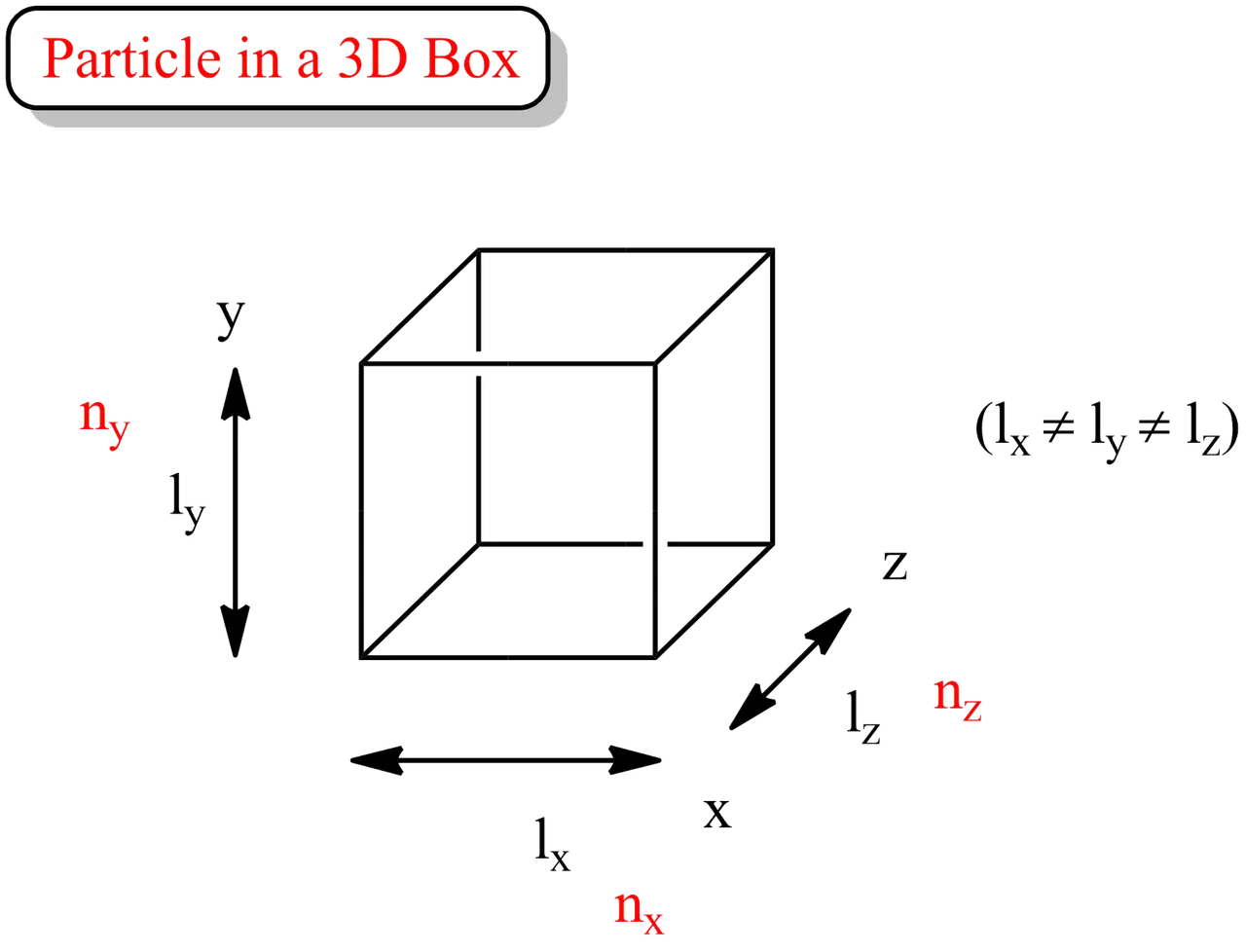

Extending our exploration to three dimensions, we consider a particle confined within a cubic box. The additional dimension introduces new complexities and nuances to the quantum behavior of the system. Similar to the 2D case, the particle's wave function becomes quantized, resulting in discrete energy levels determined by the box's dimensions.

3D box.png

Now, let us see the expressions for wavefunction and energy values for a 3D box. As mentioned earlier wavefunction is multiplicative in nature and energy is additive in nature.

math-20240204 (2).png

We have seen the expression when the box is a cube of same length. In a 3D box, the quantum states become even more intricate due to the increased degrees of freedom. The particle's wave functions exhibit more complex spatial patterns, involving combinations of multiple quantum numbers. The energy levels in a 3D box are higher in number compared to a 2D box, reflecting the increased spatial freedom.

What we learnt?

We studied the expression for wavefunction and energy for particle in a 1D box. We have applied our concepts on wavefunction's multiplicative nature and energy's additive nature to derive the said expressions.
We studied particle in a 3D box. We saw how the addition of one more dimension affects the expressions. We also checked, how it goes for a cube.
