Solos Solar Array production stats

With Array-C up and running we are now adding a third array to the list of production. But due to the loads being very low for the first month I think the PV production showed low for that array (only 129 kWh). I expect it to show more production once we have more things running inside the storage building.

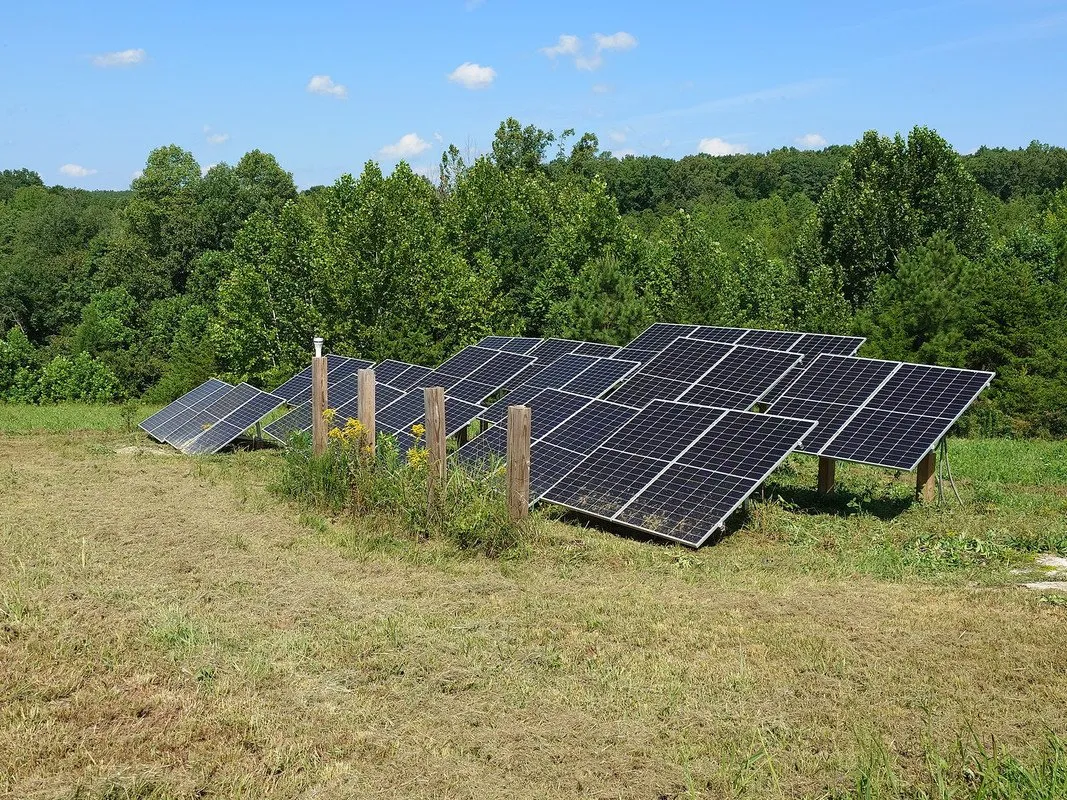

We also cleaned up by the solar panels a bit, dont mind the grass clippings. They will blow off or when the rains come around they will be removed. I try not to touch the panels not to scratch the glass.

In the month of July we produced 1631.12 kWh (1.63 Mwh) on the farm.

Array A production stats:

Load: 2249.4 kWh
PV: 410.5 kWh
Grid Import: 1964.4 kWh
Battery Charge: 143.9 kWh
Battery Discharge: 115.3 kWh

Array A build:

System Size = 5.5 kWp DC
Panels = Sungoldpower Monocryalline 60 cell (12 Panels, 450 Watts each)
Mounting System = Brightmount EG4 screwed into 6x6 timbers
Wiring: 1x 8 AWG 19 strand PV direct bury wire pair
Inverters = 2x Sol-Ark 15k all-in-ones (240V)

Battery Backup = 48 3.2v EVE LF280 LiFePO4 280AH batteries
Battery Management system = Daly Smart BMS 16S 48V 500A
Battery Capacity = 45.696 kWh (840AH)

Propane Generator = Briggs and Stratton Power Protect 26kw

Array B production stats:

Load: 1982 kWh
PV: 1090.7 kWh
Grid Import: 1006.5 kWh
Battery Charge: 328.2 kWh
Battery Discharge: 287 kWh

Array B build:

System Size = 9 kWp DC
Panels = Sungoldpower Monocrystalline 60 cell (20 Panels, 450 Watts each)
Mounting System = Brightmount EG4 screwed into 6x6 timbers
Wiring: 2x 8 AWG 19 strand PV direct bury wire pair
Inverters = Sol-Ark 15k all-in-one (240V)

Battery Backup = 48 3.2v LiFePO4 290AH batteries (unknown brand)
Battery Management system = Daly Smart BMS 16S 48V 250A
Battery Capacity = 47.328 kWh (870AH)

Propane Generator = Briggs and Stratton Power Protect 22kw
Totals combined for all arrays:
1344.4 kWh (1.34 MWh) produced for the month of May
Previous posts on my solar stats

Array C production stats:

PV: 129.92 kWh

(More stats to come in future posts)

Array C build:

System Size = 9 kWp DC
Panels = Eco-worthy Bifacial 190W (2 strings of 48 panels running at 275v each)
Mounting System = 12 Eco-worthy Multi-panels mount holds four panels each.
Wiring: 2x 8 AWG 19 strand PV direct bury wire pair
Inverters = Sol-Ark 15k all-in-one (240V)

Battery Backup = 3x Pytes V5 batteries
Battery Management system = Built in Pytes BMS
Battery Capacity = 15 kWh (272AH)
