Simple Pendulum

Periodic motion is not limited to simple harmonic motion (SHM) that we covered up to this point! Of course, not all periodic motion systems have to contain springs.

The simple pendulum is yet another idealized model for periodic motion. In such a system, a point mass m is hanging from a weight-less and non-extensible string within a homogeneous gravity field. Moving the mass from the equilibrium position to one side causes an oscillation (or periodic motion) around the equilibrium position.

Return Force

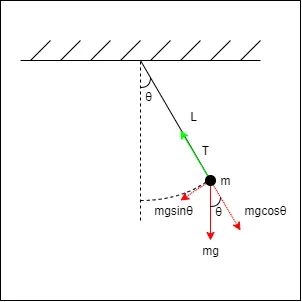

The oscillation "route" in the case of a pendulum is not linear, but a circle arc. An arc from a circle with a radius equal to the length of the string, commonly denoted L.

If θ is the angular displacement from the vertical equilibrium position, then the component of the gravitational force that acts upon that route, and so the return force, is given by:

This also proves that such a periodic motion is not simple harmonic motion, as the return force is not proportional to x or at least θ, but instead sinθ.

Small Angle Approximations

When θ is very small, we can approximate sinθ with θ, which gives us:

and so an equation of the form F = -kx, where mg/L plays the role of the k spring constant.

This allows us to approximate pendulum oscillation as if it was simple harmonic motion (!) and gives us equations such as:

These equations don't dependent on the mass of the object, but only of the length of the string, L.

Using these, we could also approximate the angular displacement as:

More Accurate Period

Let's also mention how one would approach getting more accurate results! The period can be expressed as an infinite series of the form:

where Θ is the maximum angular displacement (basically the amplitude).

For example, for Θ = 15° the difference between the approximation and this series is only about 0.5%, so the approximation can be considered quite sufficient!

Gravity Approximation

It makes sense to use a pendulum in order to approximate the acceleration of gravity, as the period and length can be calculated easily and with great accuracy!
