With the end of the Covid-19 outbreak season, I hope the community's economy will improve quickly and this week I feel very grateful to be able to get a package of orders for door frames, windows and jalousies for 2nd floor shophouse construction owned by the surrounding community and for the design of the frames of the building, it can be said that it is an ordinary design which is generally used by the public.
The frame order package that I received this time contains 2 units of doors + jalousie, 4 units of windows + jalousie and 2 units windows of dabel + jalousie windows and for all these frame sizes, consisting of..
• 2 door units measuring 80cm wide X 200cm high and
• 2 the door jalousie measuring 80cm wide X 25cm high.
• 4 windows measuring 40cm wide X 120cm high and
• 4 jalousie measuring 40cm wide X 25cm high.
• 2 units of dabel windows measuring 40cm wide X 120 cm high and
• 2 units of jalusi dabel measuring 40cm wide x 25cm high.

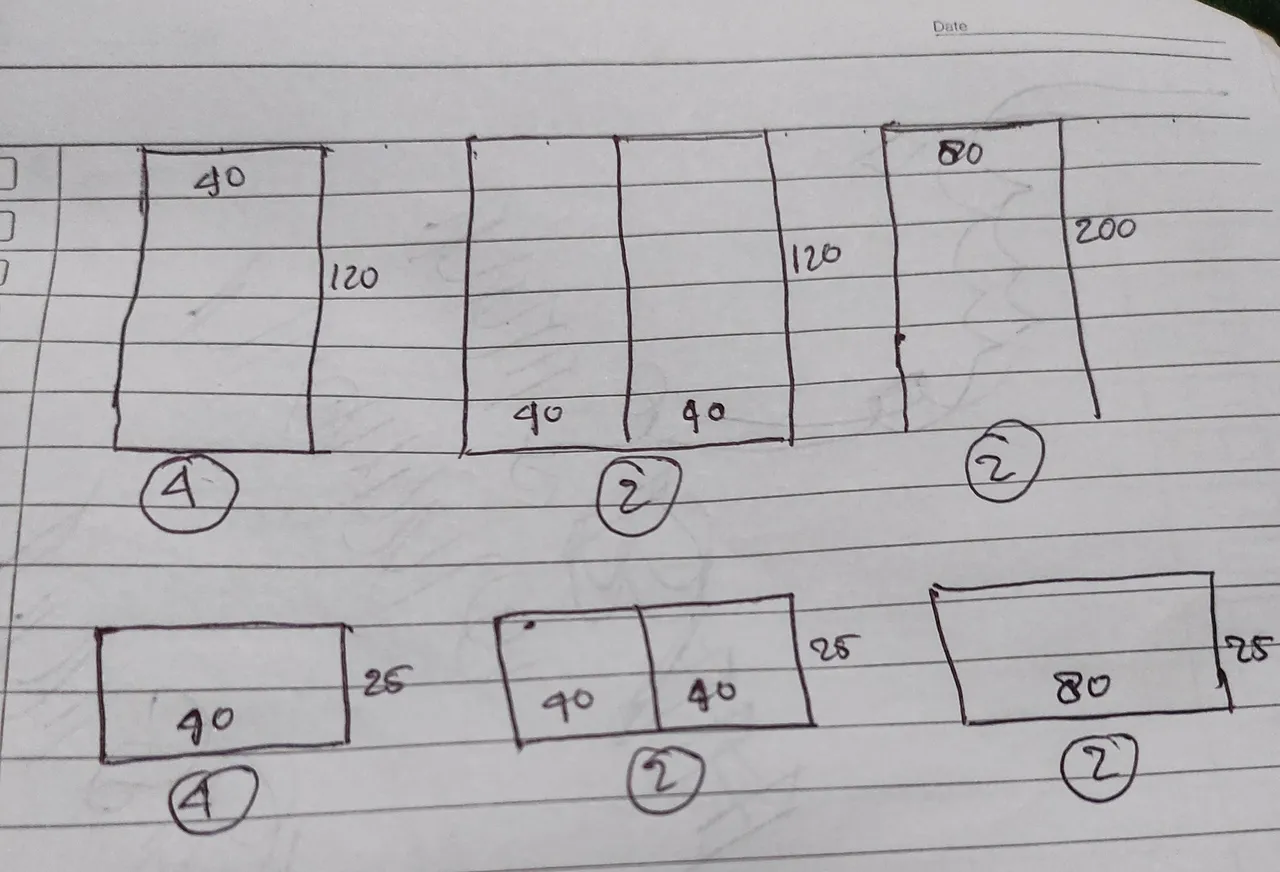

And this is the size and number of package units I received from customers with design drawings.
The total budget for the production of this package of all door, window and jalousie frames is 4.465000 or approx $319.
And this is the price for the surrounding community and this is one project I just finished this week and in today's architectural design publication, I want to share the process of working on this project until it is finished and ready to be used for building construction materials.
The customer ordered the material for this project, meranti wood, which is a level 2 wood group that is generally preferred by local people with a characteristic dark brown color with white fibers.
To complete that project, the main material I need is ..
•The which has been tidied up woods beam is 12.5cm wide X 5.5cm thick and complete with door/window rail mounts.

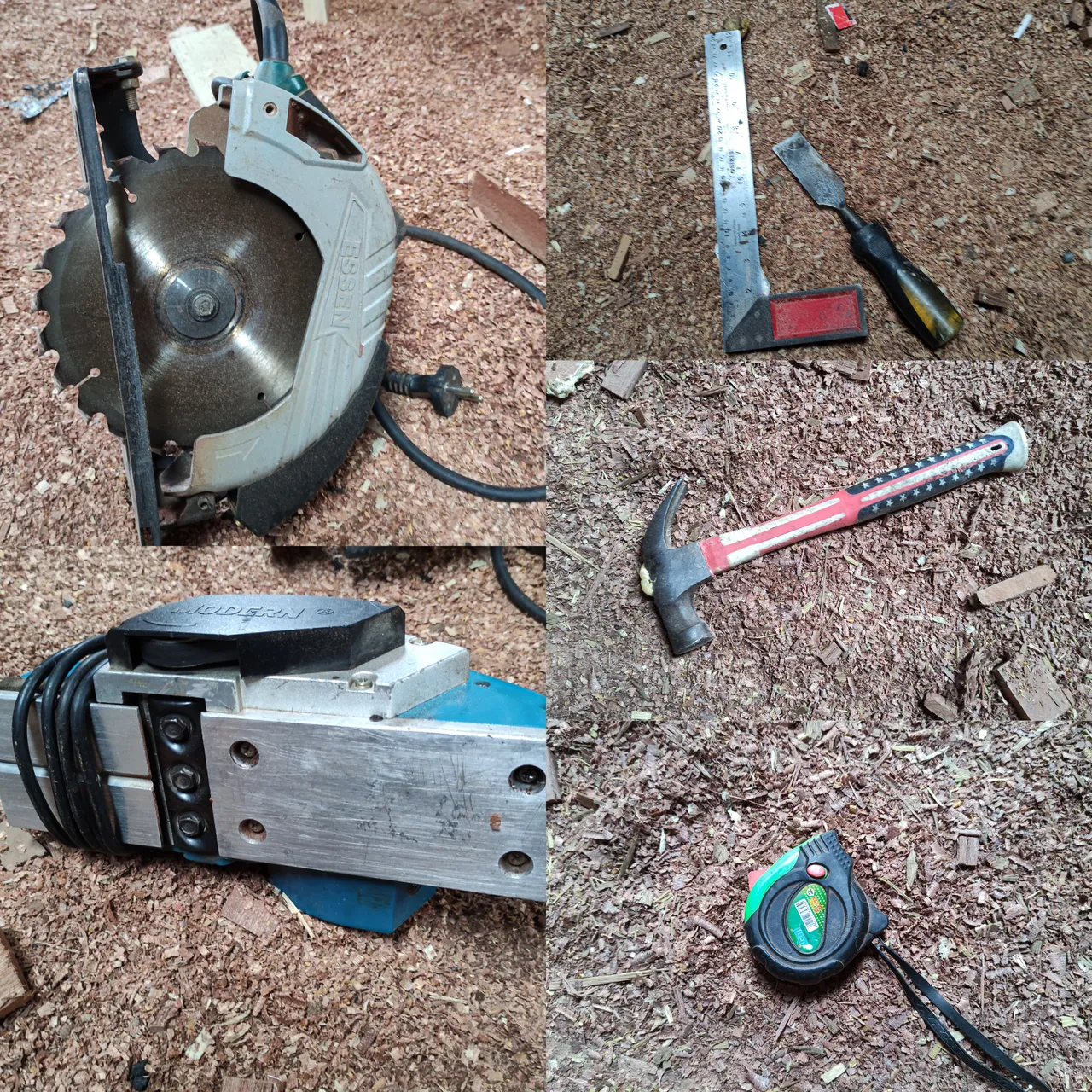

And for the machine tools that I need to complete this project are mini machines that I use in various kinds of furniture projects that I work on every day, namely..
• Wood cutting machine.
• Flower engraving machine on the corner of a wooden surface.
• Meter.
• Elbow roller .
• Wood chisel .
• Hammer and
• 4 inch nails.
Order package the has a uniform size and according to the drawings and sizes listed in the design drawings provided by my customers.
And in the process of cutting wood is relatively easy because it has the same size and for the first material we have to cut to complete this project so that the wood is not wasted a lot is the wood for the main pole frame, namely wood for the height of the doors and windows.
For door height ukuran
that is 200cm and for the height of the window it is 120cm and the total wood that we have to cut for the main pillar of the frame series is..
• 4 wooden frems door posts for the left - right base post frames for 2 doors with a length of 200 cm and
• 14 main pillars for all these window frames with a length of 120cm.
Then after I finished cutting the basic circuit material, I continued by cutting the frame for the frame assembly for the windows and jalousie frames .
In material cutting preparation frame to emphasizing the fastener frame, here we need calculations for reducing and increasing the size of the width of the wood, so that there are no errors when cutting the material and for the wood material, the width of the door frame, window and jalousie frame after I calculate is.
• 6 bulkheads for the door frame, measuring 99cm long, consisting of 2 doors and 2 jalousie.
• 16 bulkhead bars up and down the width of the window frame and for the jalousie window pair, which consists of 4 windows and 4 jalousies and
• 8 wooden sticks measuring 102cm long for windows and jalousie for 2 units of attached window frames and 2 units of attached jalousie for the window pairs.

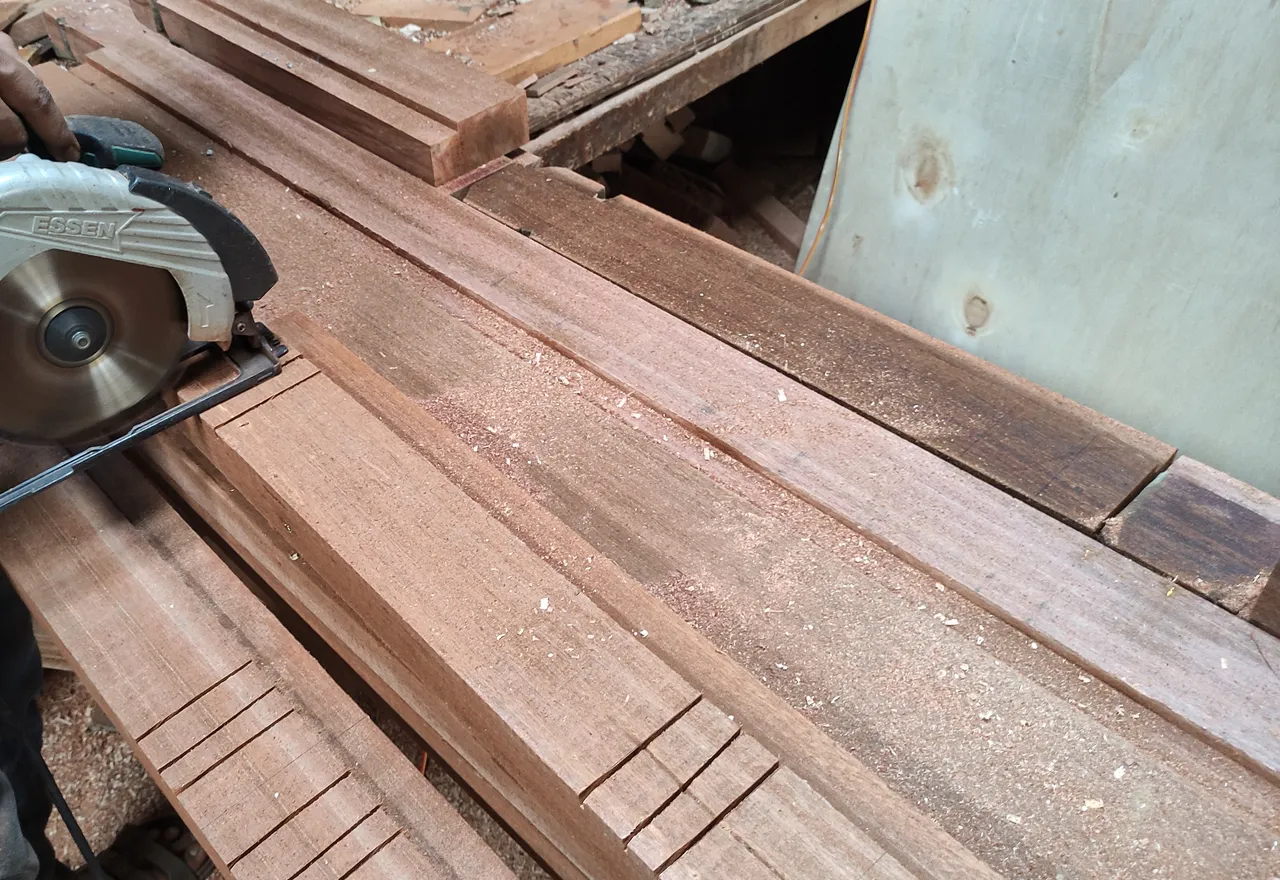

After all the basic materials are finished, the stage of cutting the wood is to measure the height of the jalousie from the door and window frames with that height of all the jalousies from the frame is 25cm and for the bulkhead of the jalousie poles, we use the remnants of cut wood from the main circuit material and the total truss for the jalousie height of 25cm is 16 sticks.
Then after all the assembly materials are finished, now I continue the process of carving the pole mounts for the doors, windows and jalousies from the of frames.

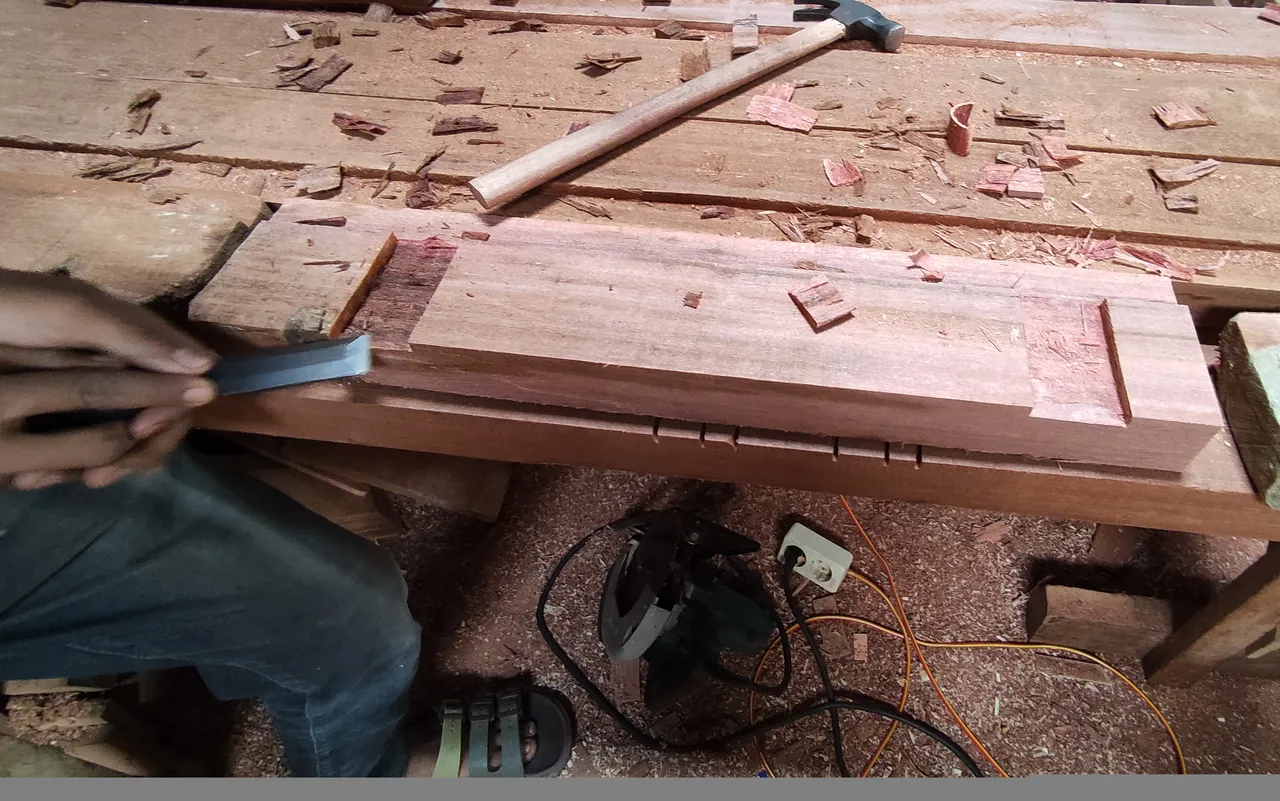

Then on all the upper and lower bulkhead frame materials, we need to line and cut to carve a holder for the frame series posts with a hole depth according to the sponge mount depth which is 1cm and the thickness of the wood we use is 5.5cm and for wood window and door frames, of course, have different lengths, this is roughly the result after the engraving process is complete for the main pole holder the height of all the frames on the main circuit of the upper and lower fasteners.

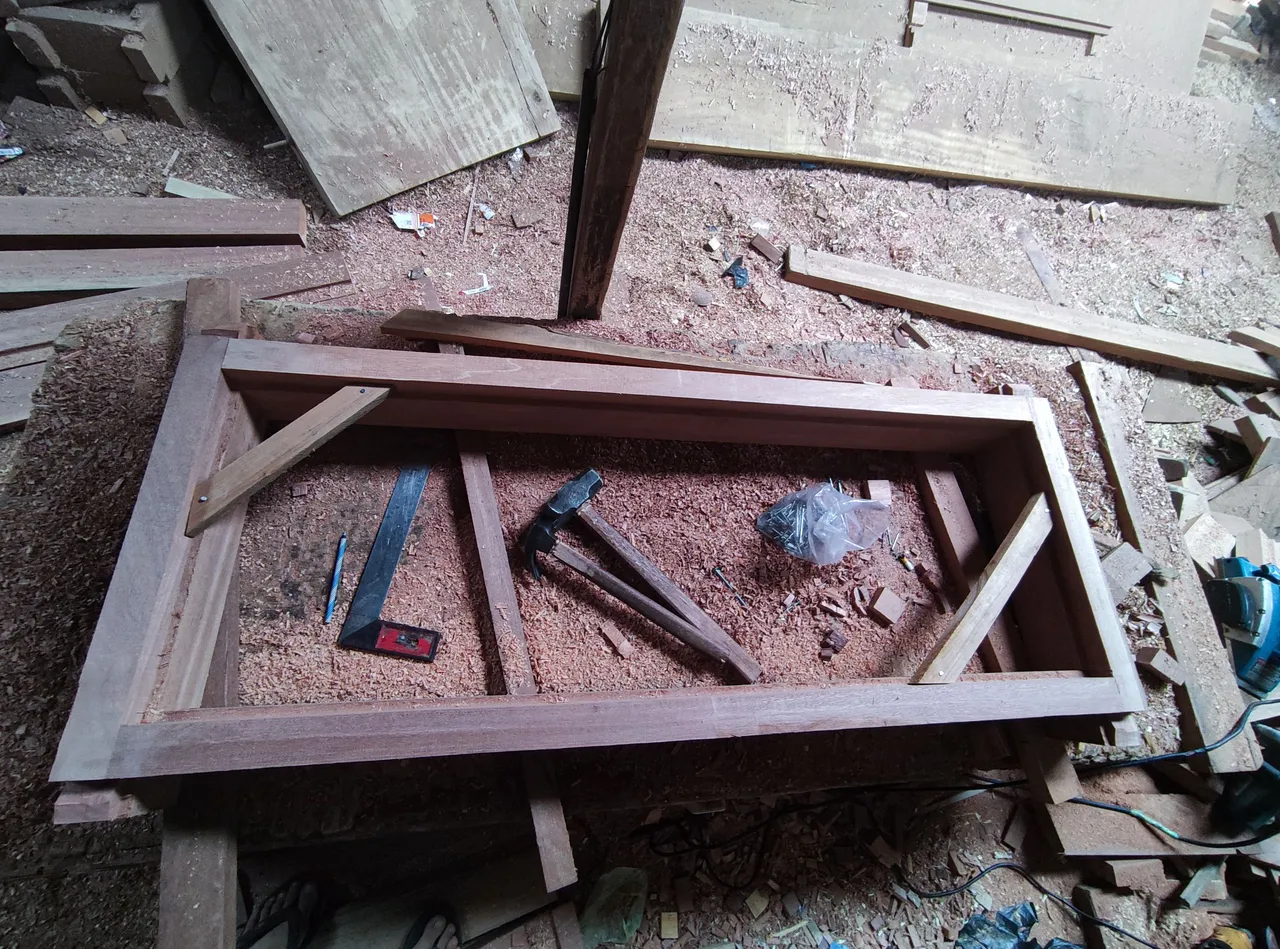

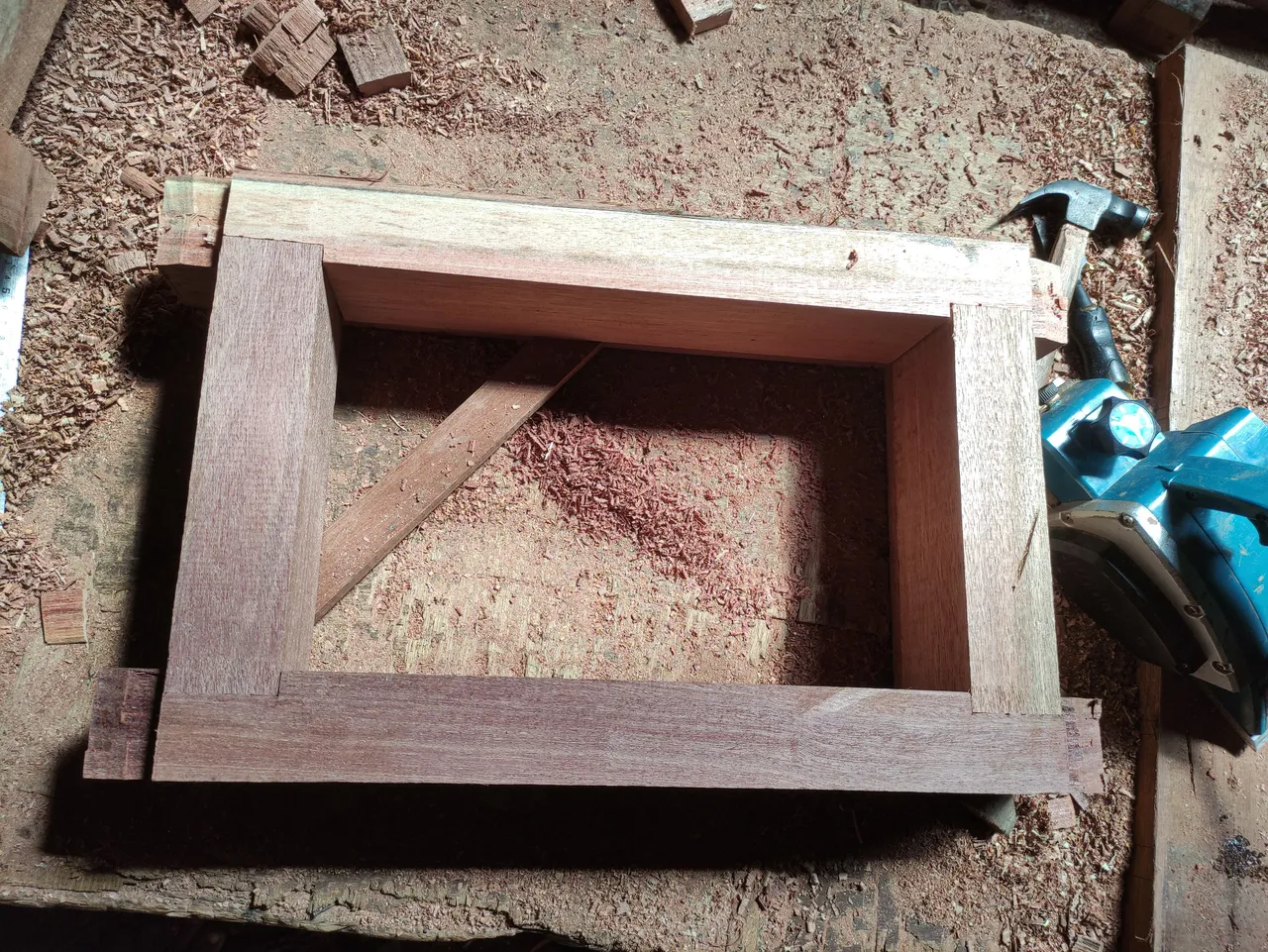

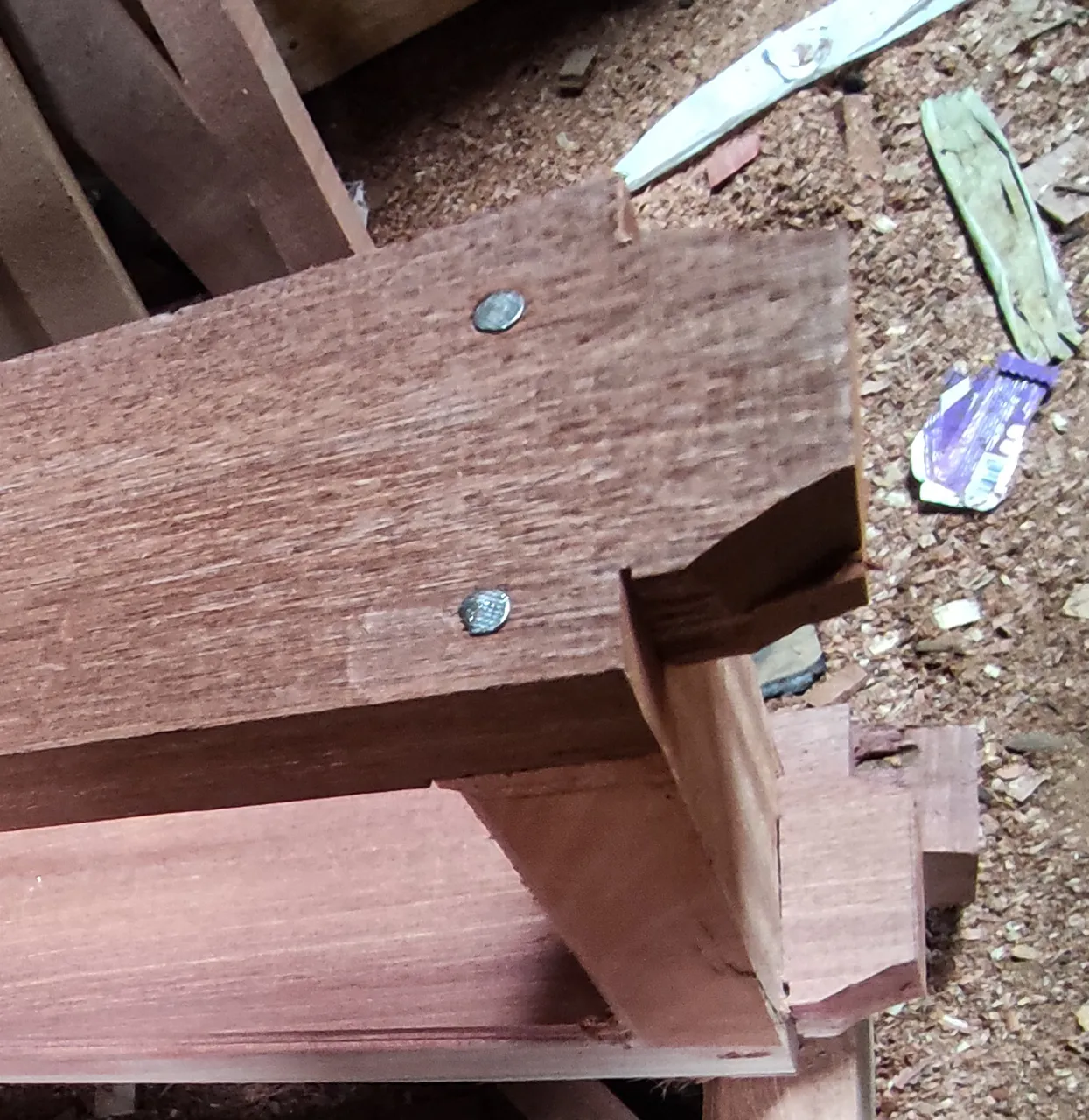

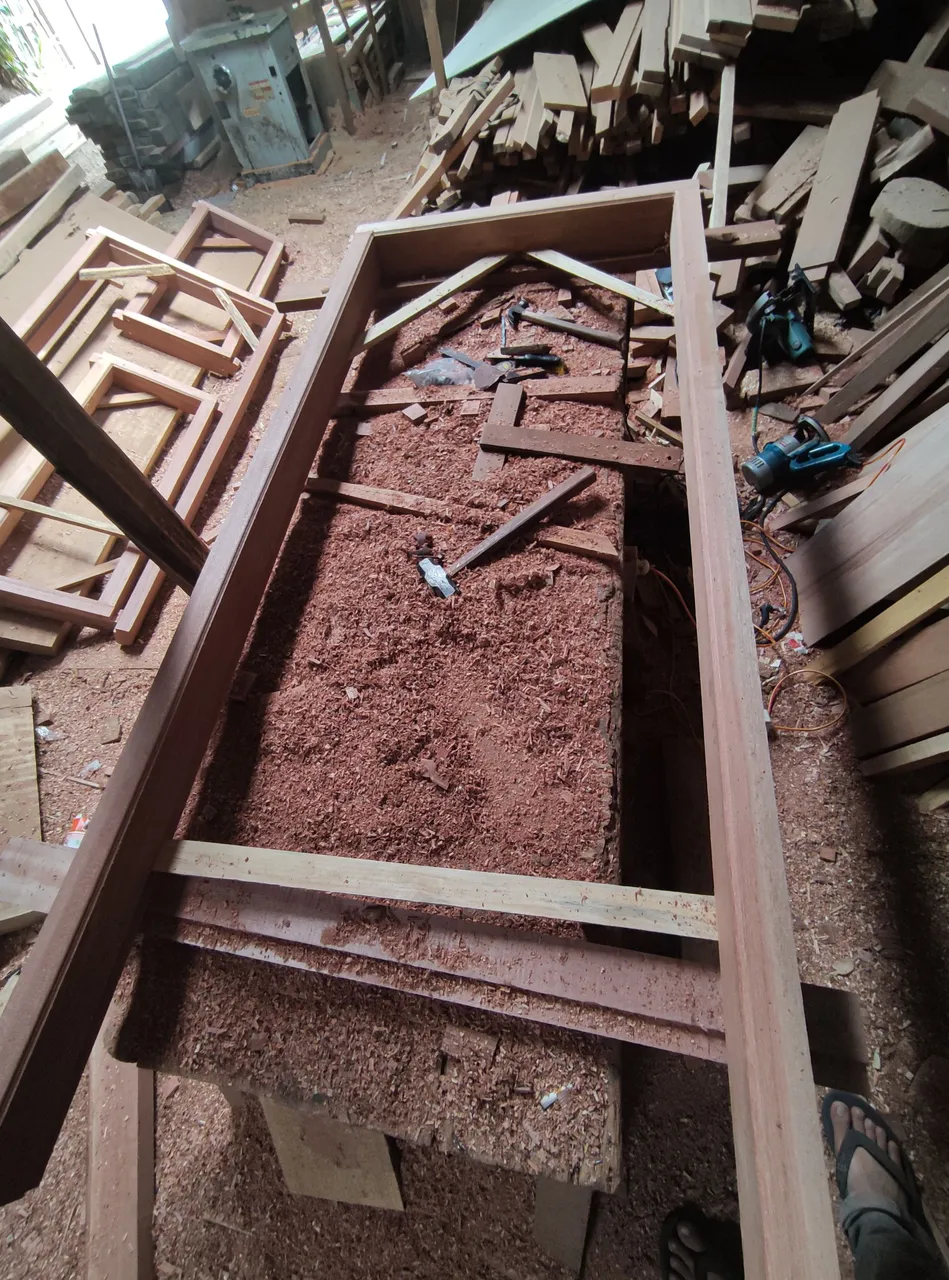

And for the next stage, which is the process of unifying all the circuits using 4 inch nails and on each connection holder I use 2 nails and I also drill some of the wood first so that the wood does not crack during the nailing process.

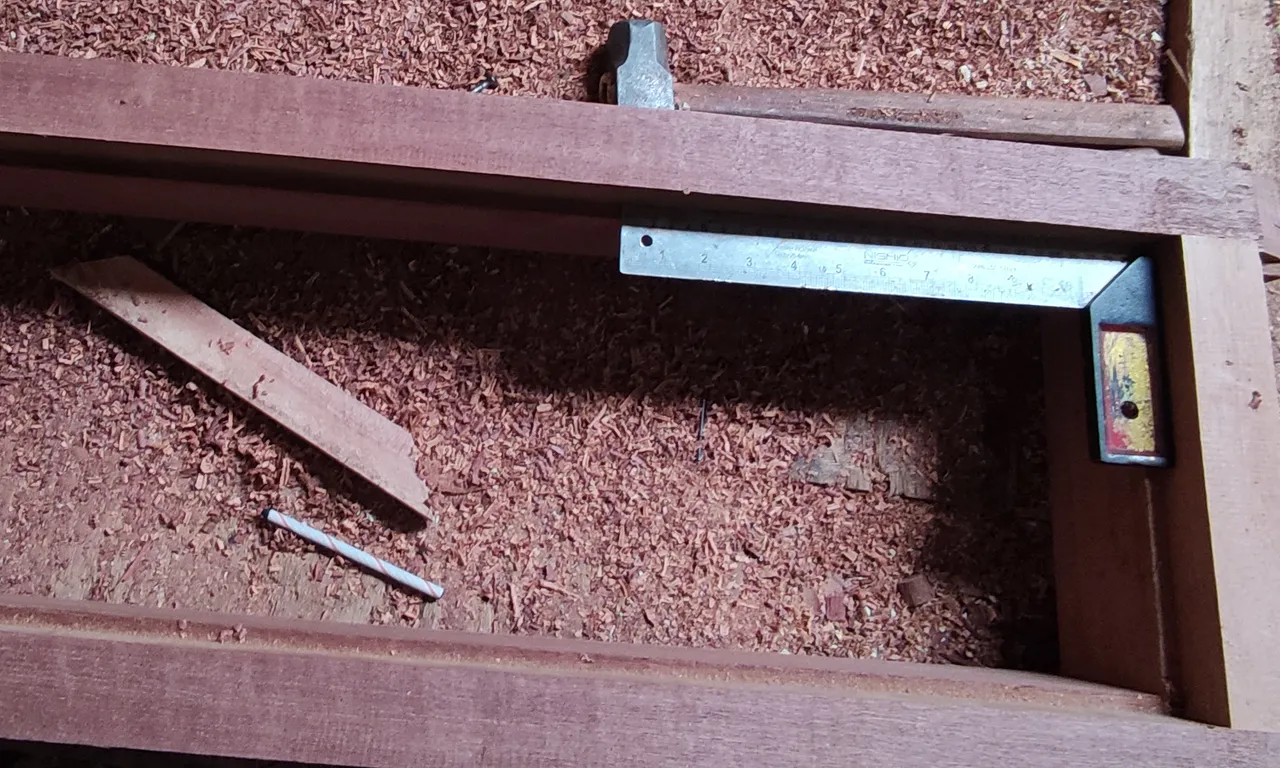

And after I finished all the circuits, then I continued the trimming process or smoothing the front and back surfaces of the frame, as well as the process of trimming the frame nails and then i worked on perfecting the elbow mounts on the sponing angles of the frames and providing retaining wood so that the angles of the elbows were not shifted when the frames were installed during adjustment at the construction site.
And for corner brackets on jalousies and single windows we often provide 1 retainer and for door frames, we often provide 2 brackets with different sizes of wood chips.

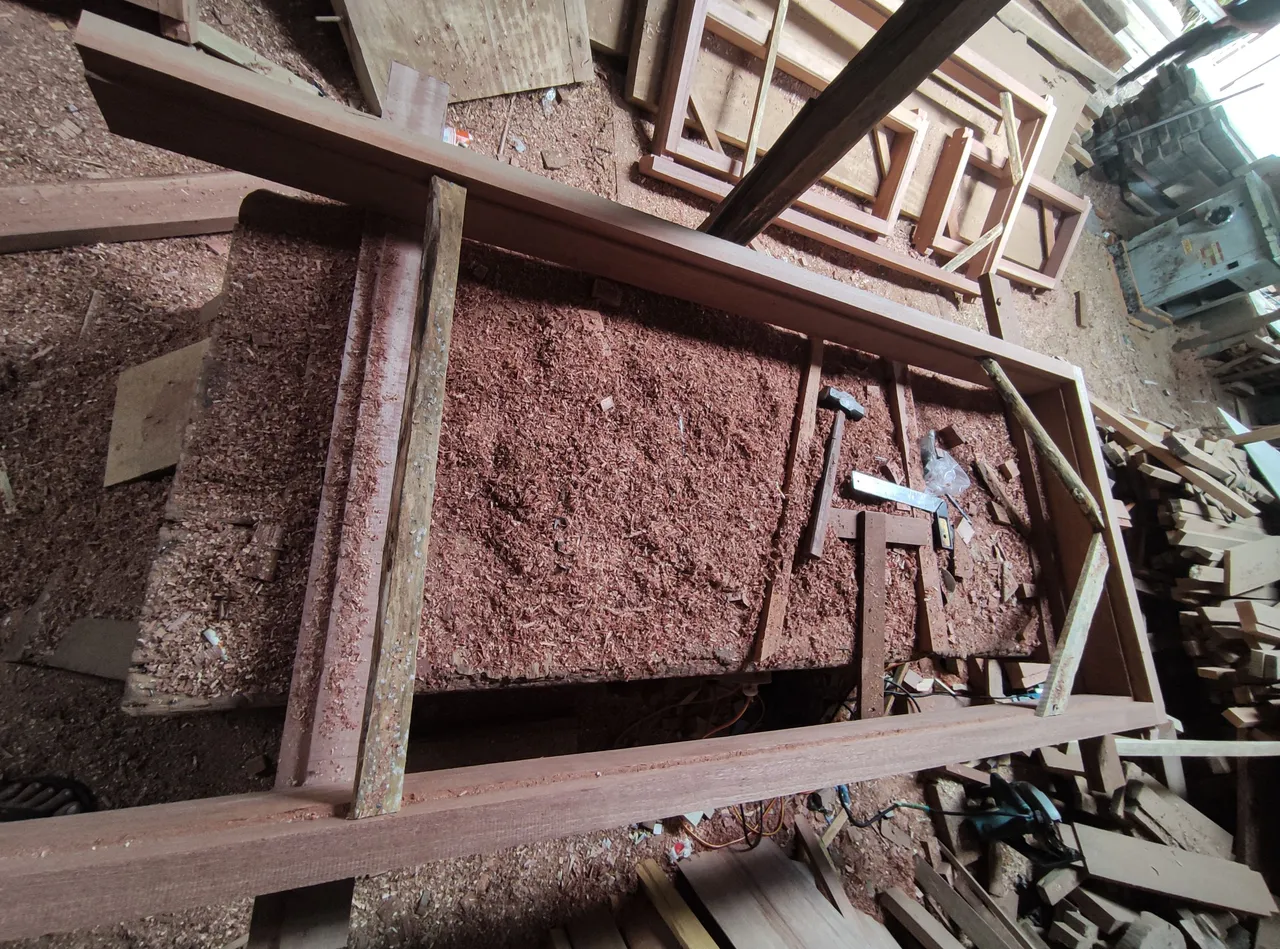

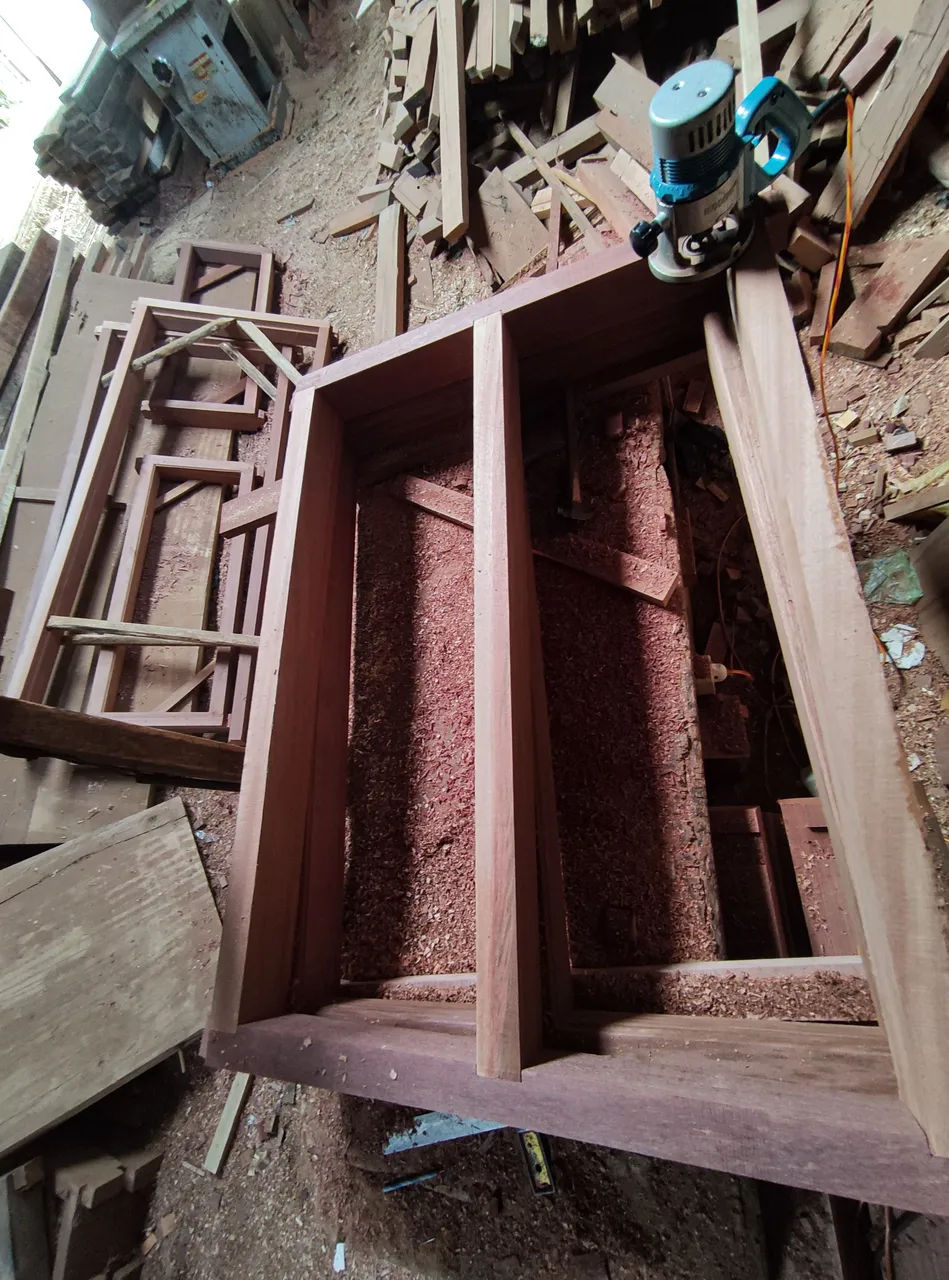

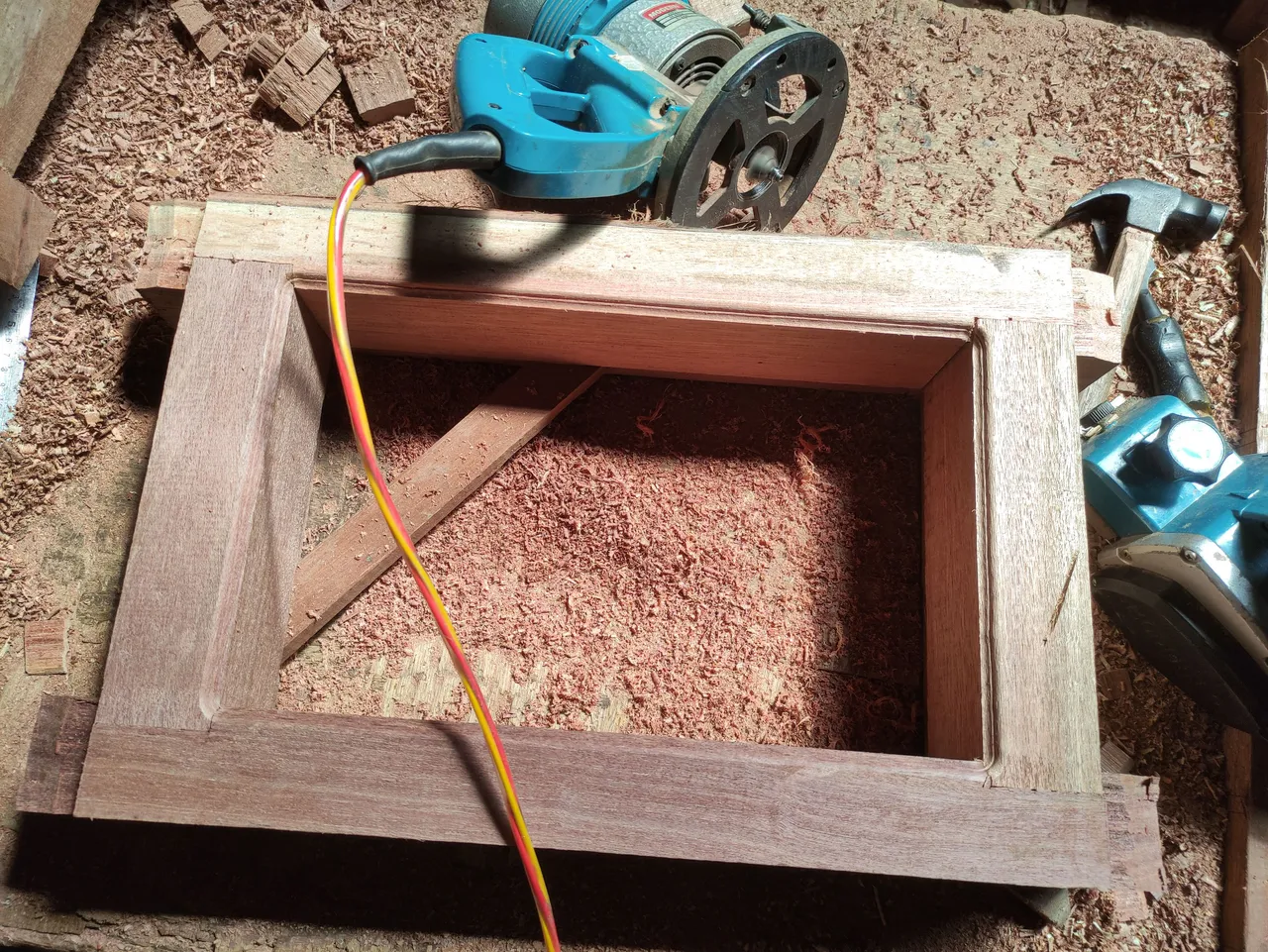

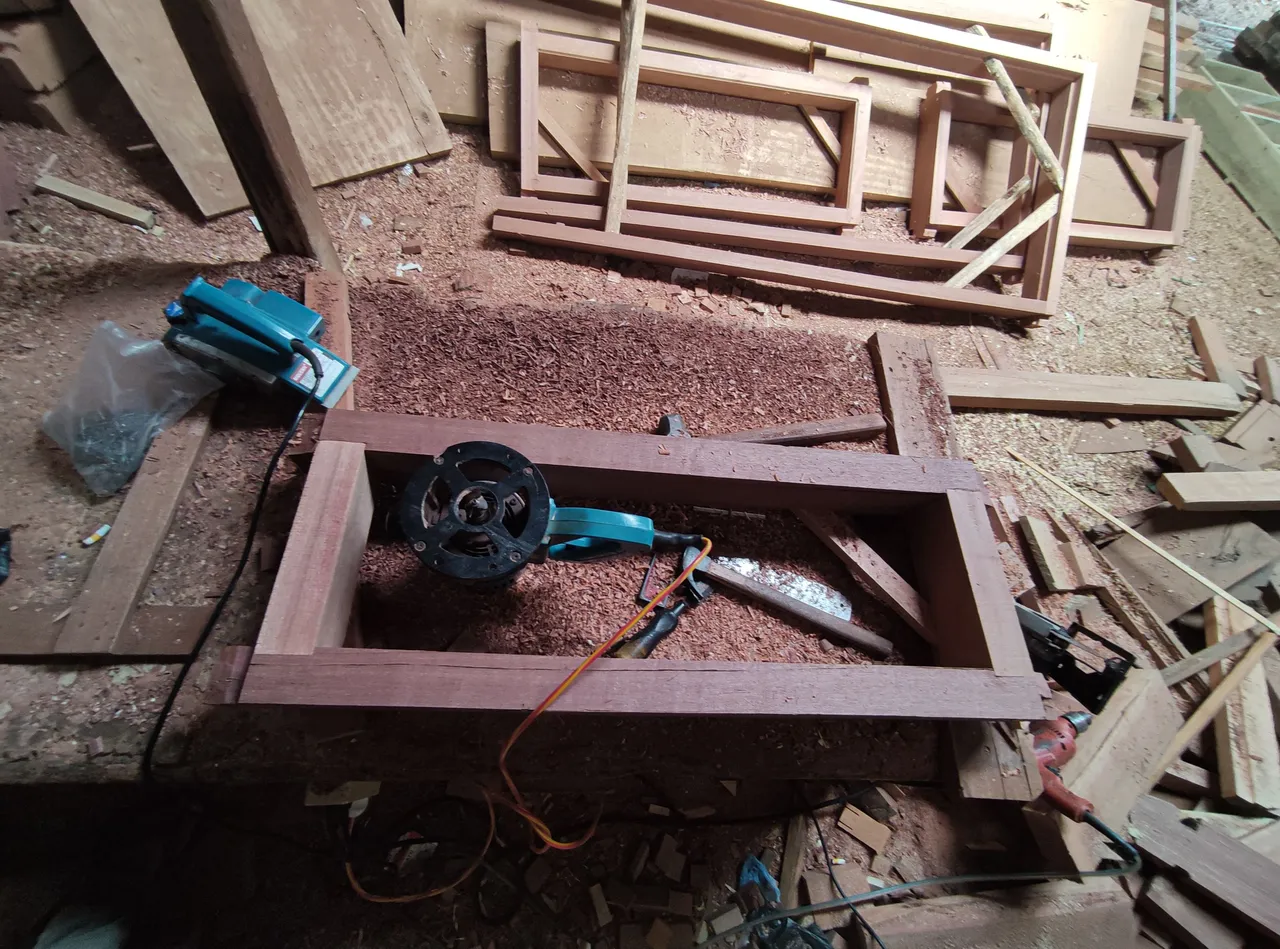

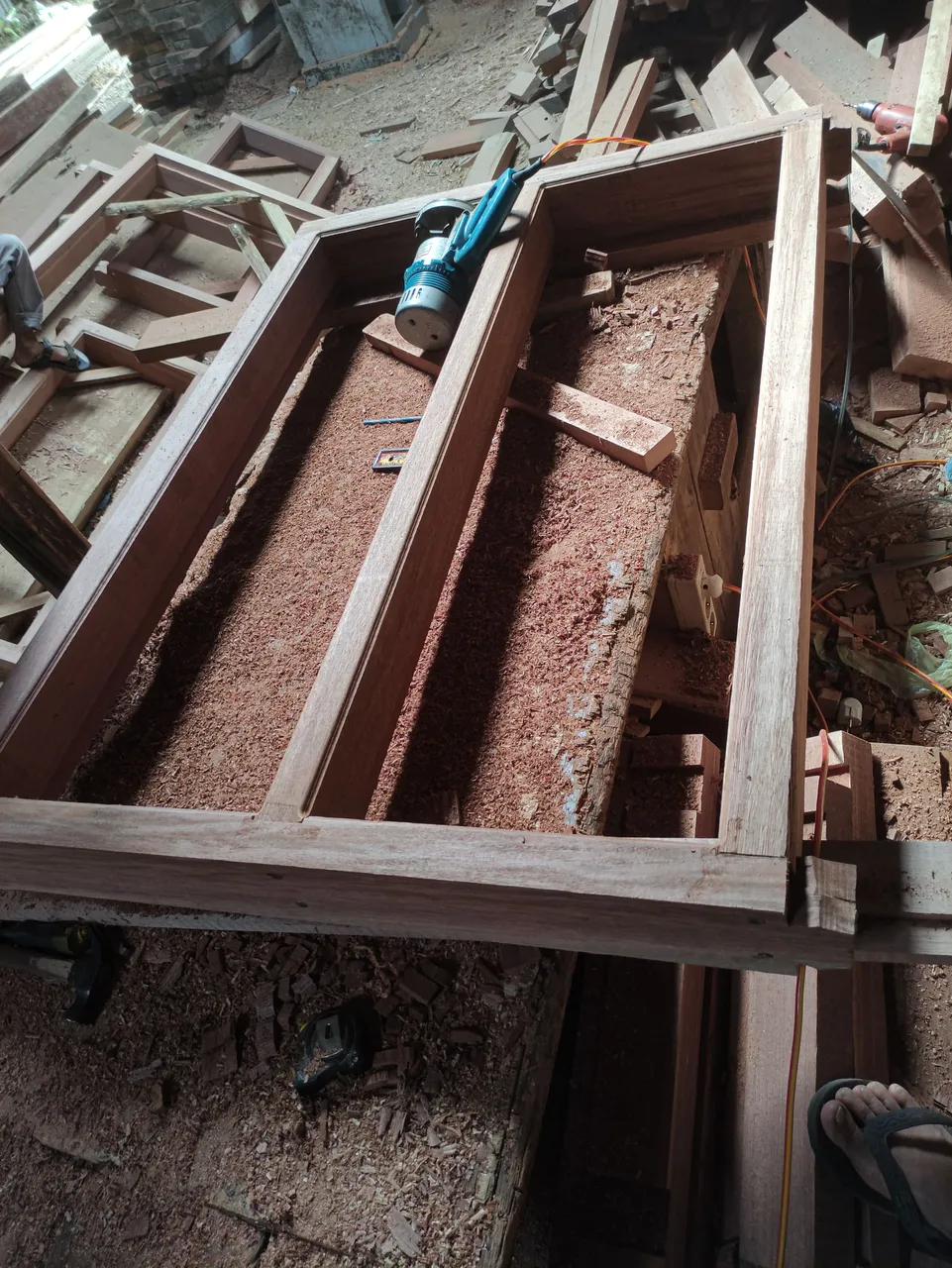

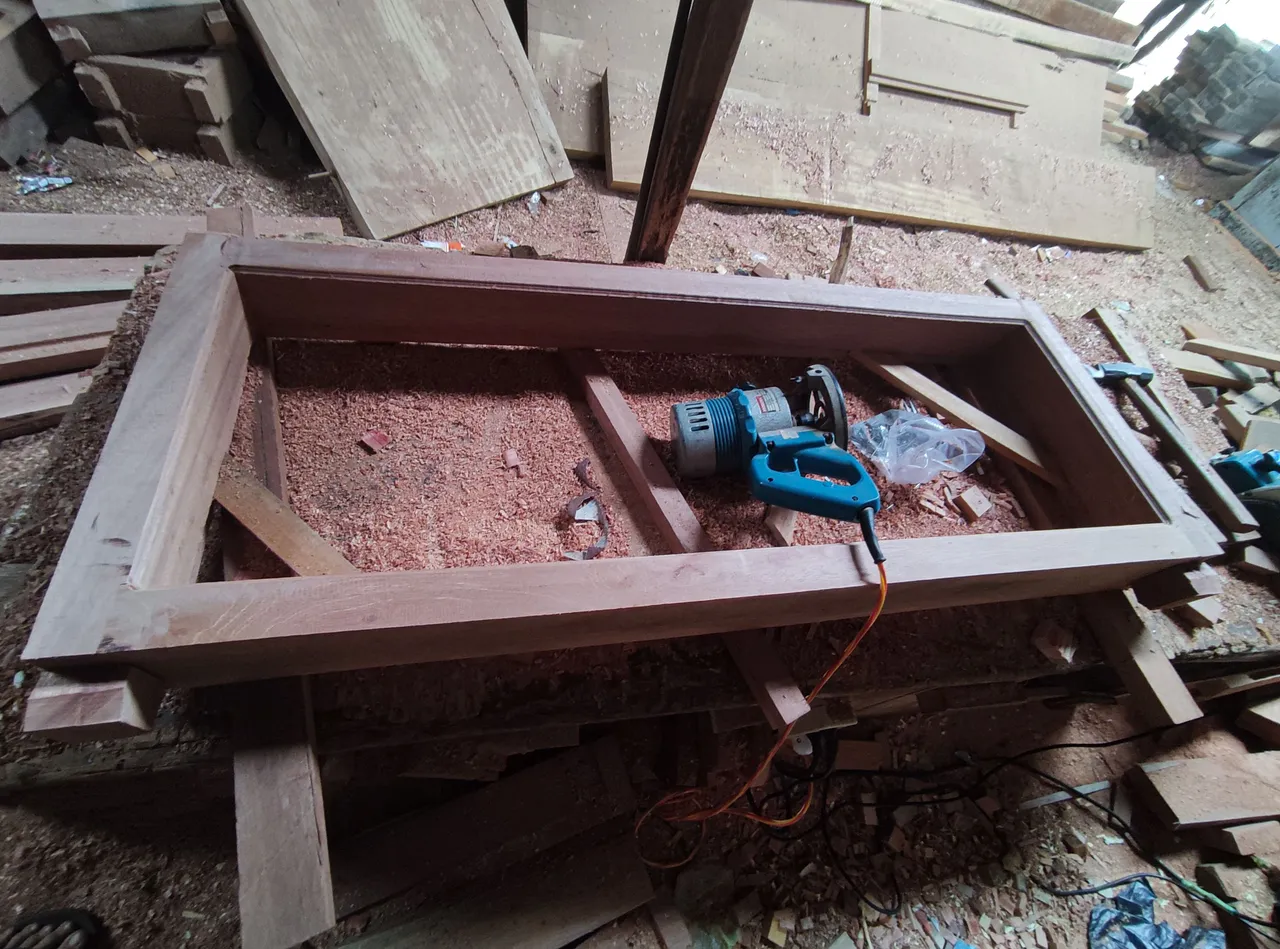

Then, now we move on to the process of the back surface of the frame and on the back of the frame after the trimming is complete and the nail grate process is complete ,then we give flowers on the inside of the wooden surface so that the frame looks more beautiful and neat by using a router machine.

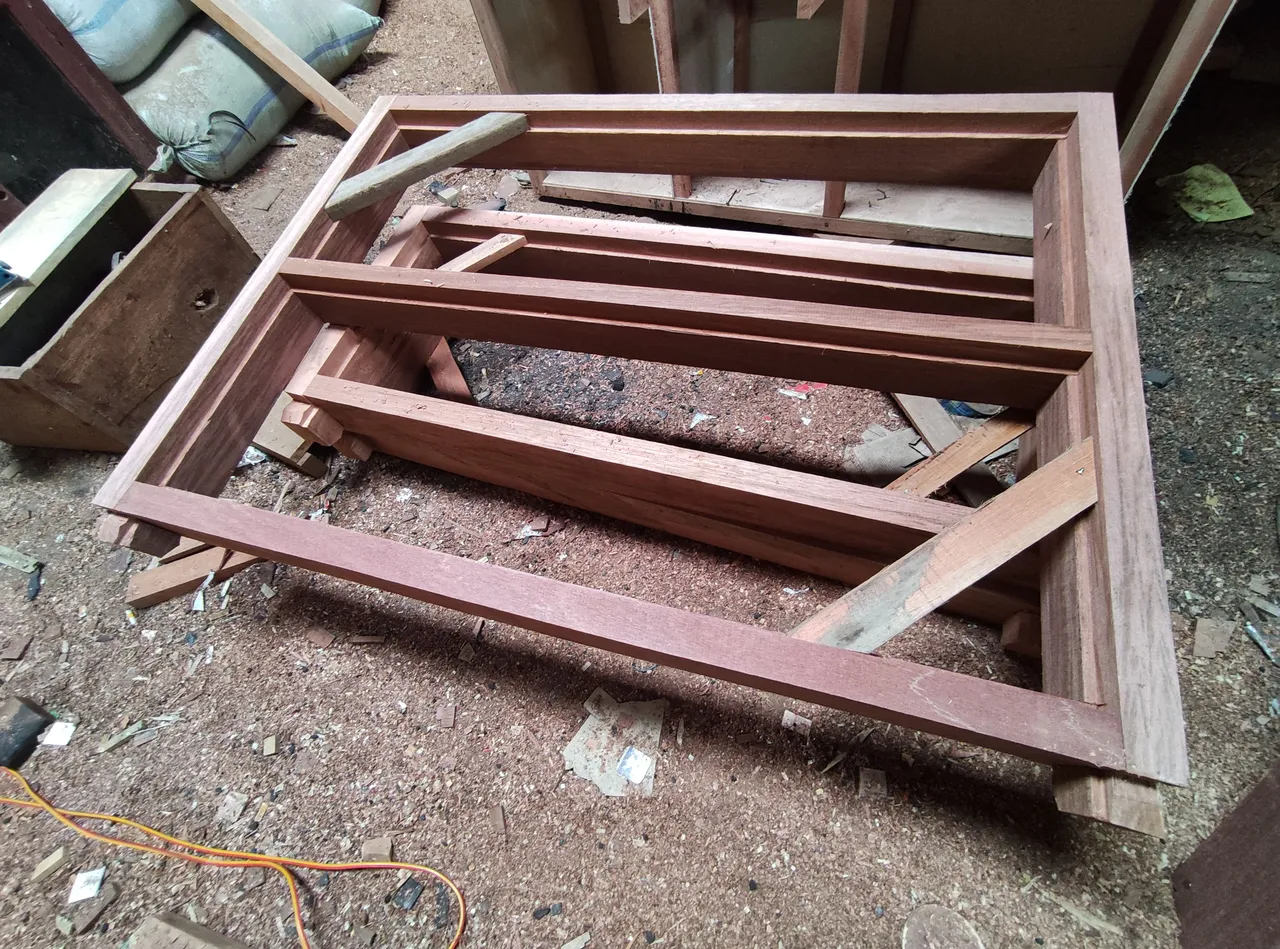

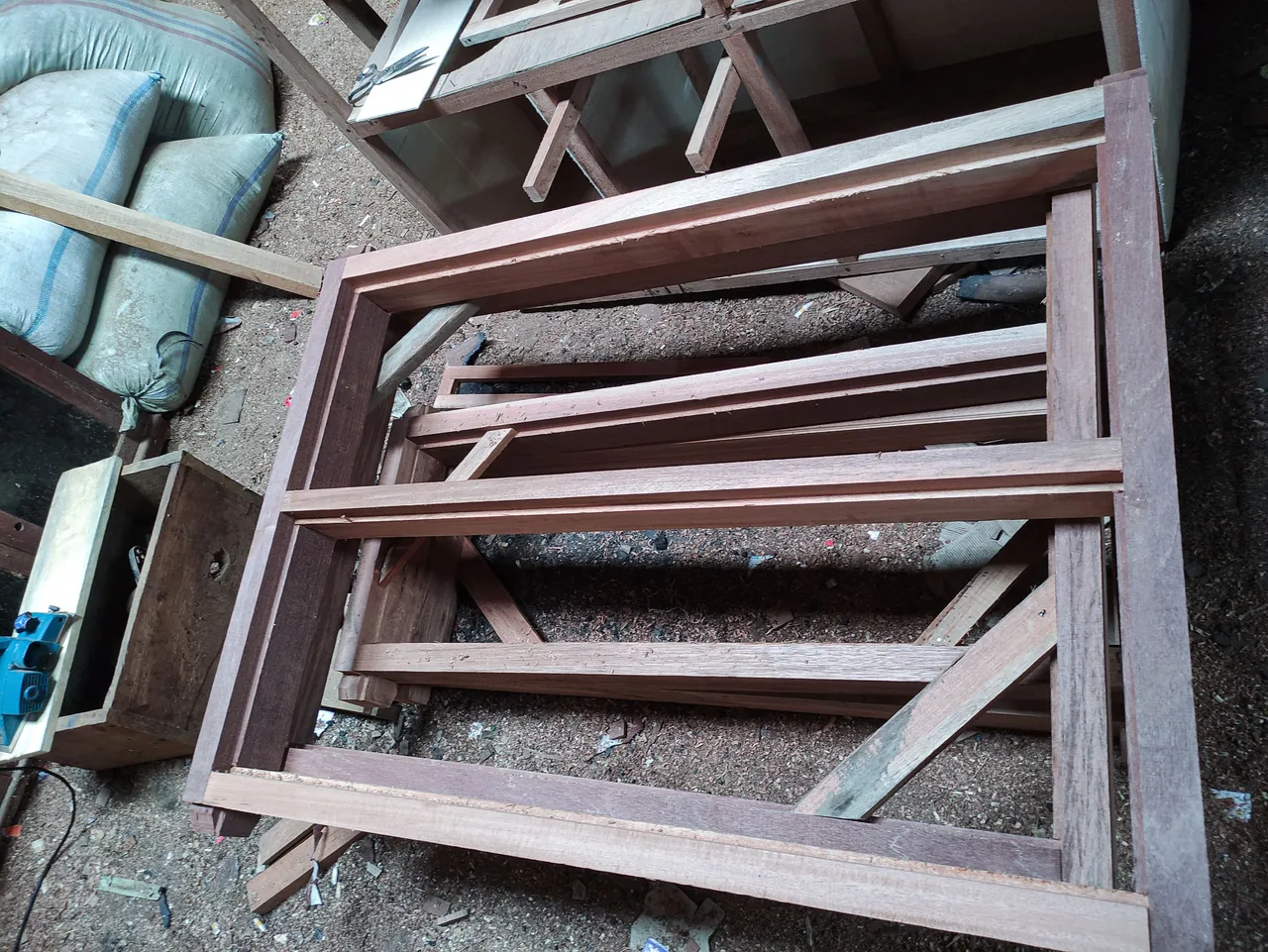

And now the order for the door frame package, the local community's order window with a complete picture design and a size made from meranti wood, I finished doing with the total budget is for the production of this package of all door, window and jalousie is 4.465000 or approx $319and this is the image display of the results of these frames.

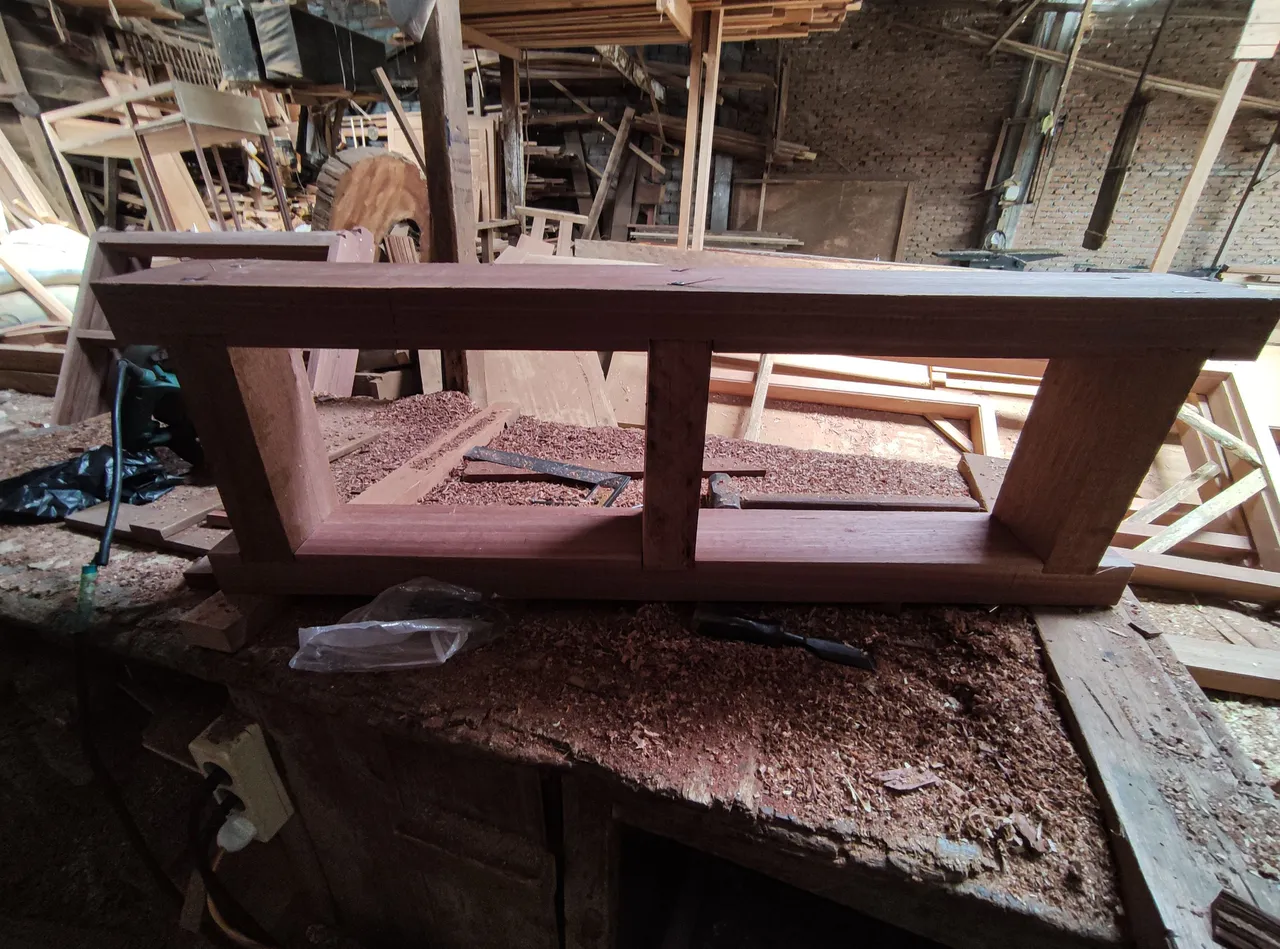

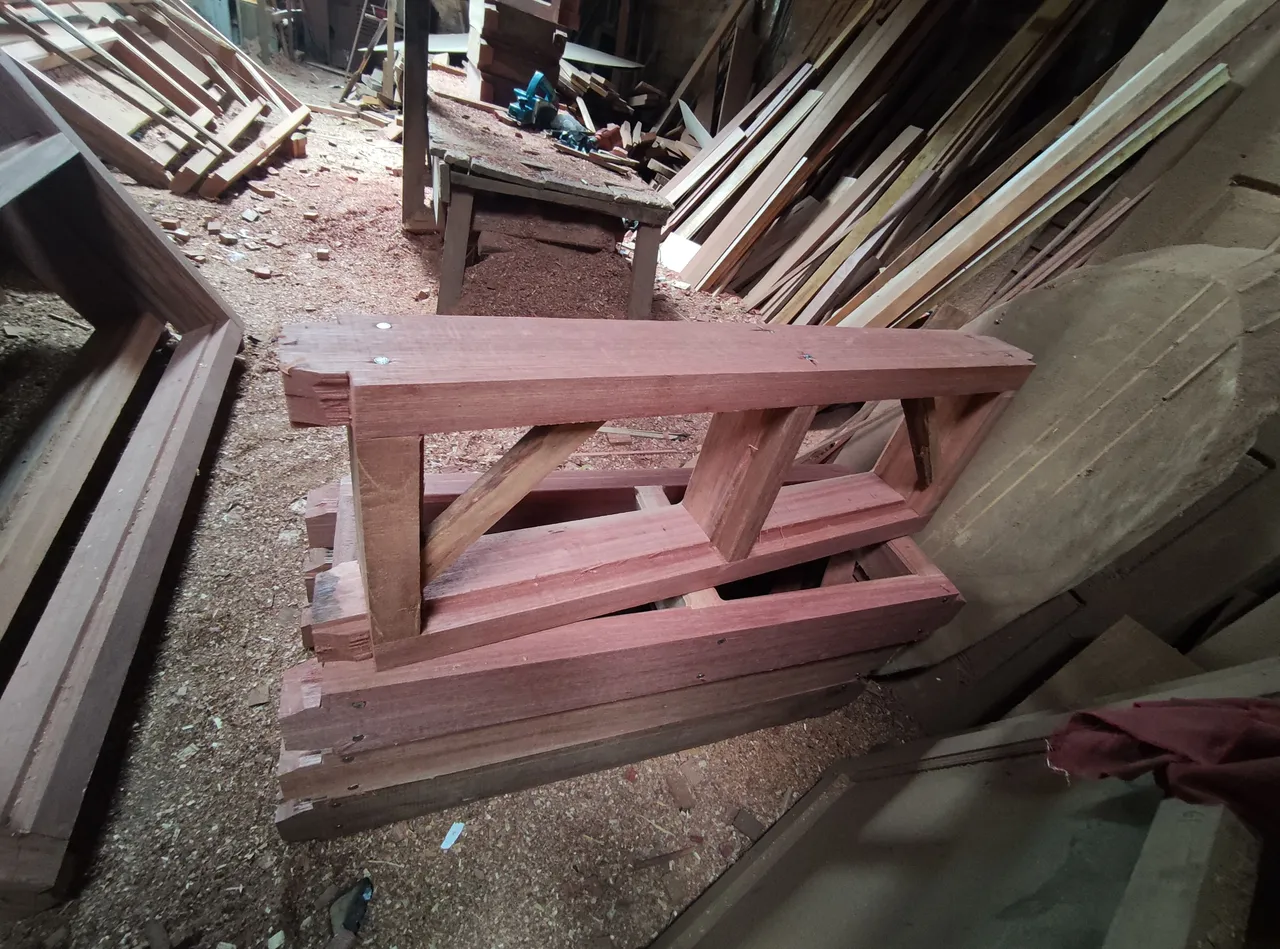

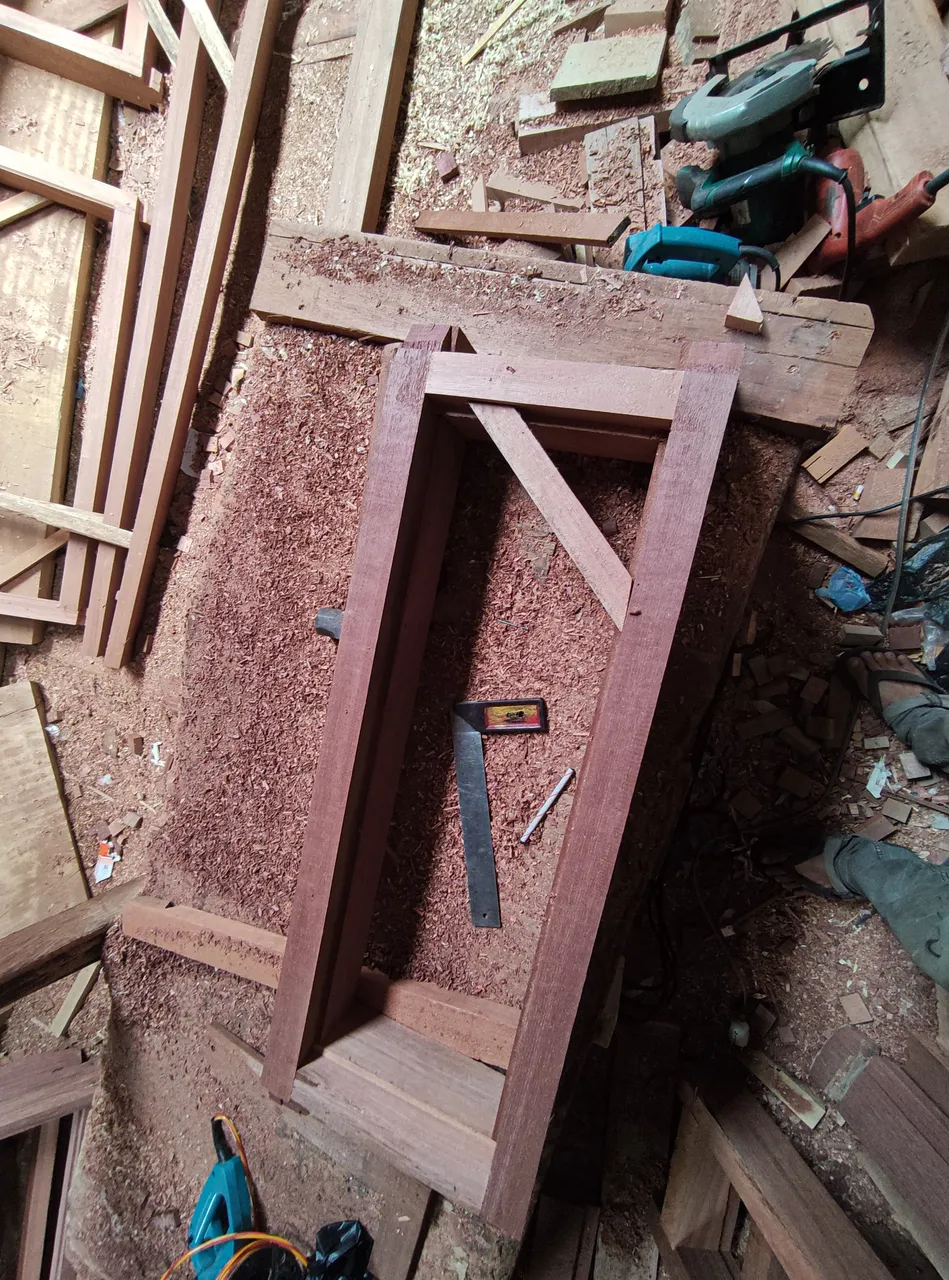

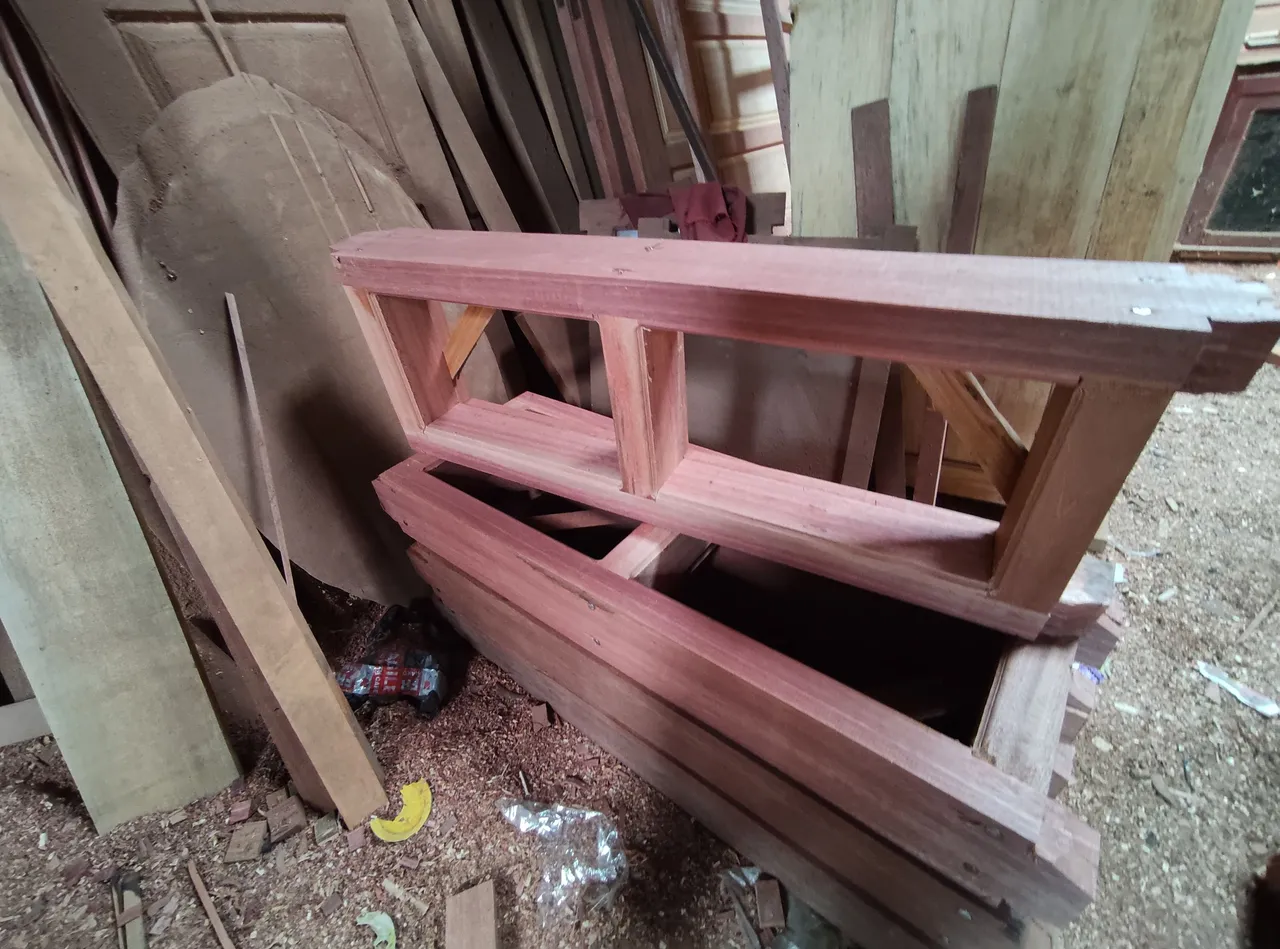

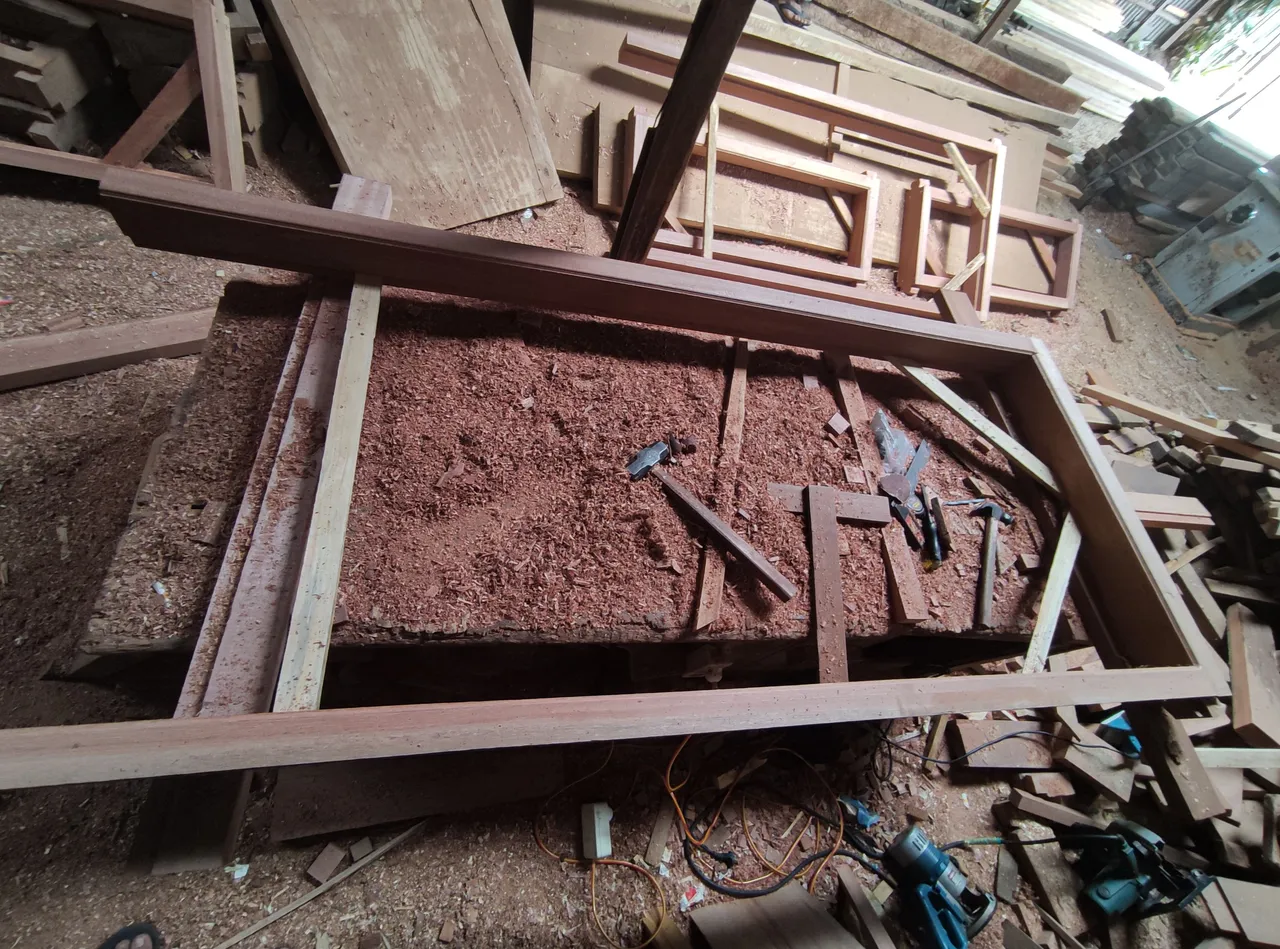

In the first row of pictures, you can see a gallery of door frame displays consisting of 2 units with a width of 80cm X height of 200cm and also a picture of that door frame jalousie.

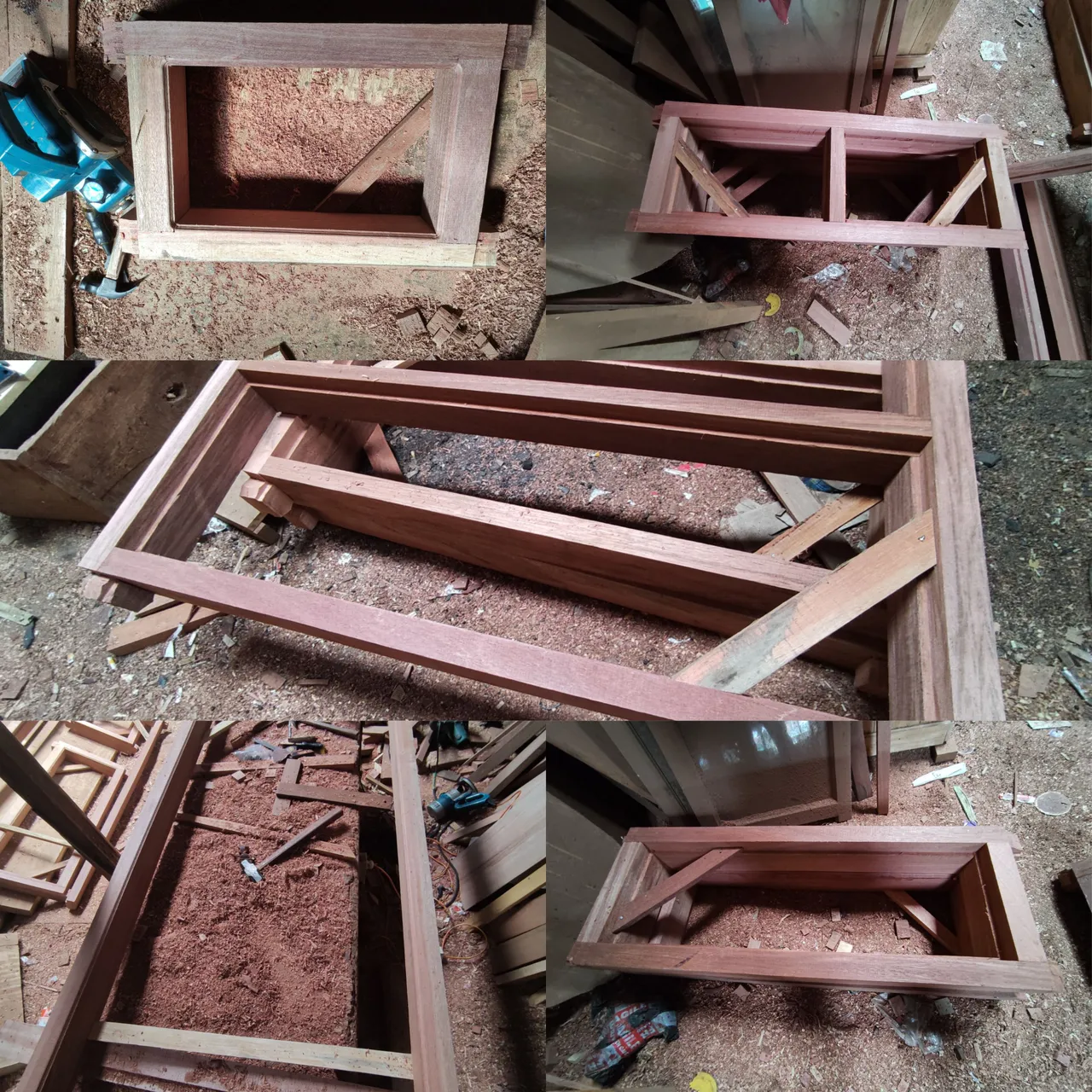

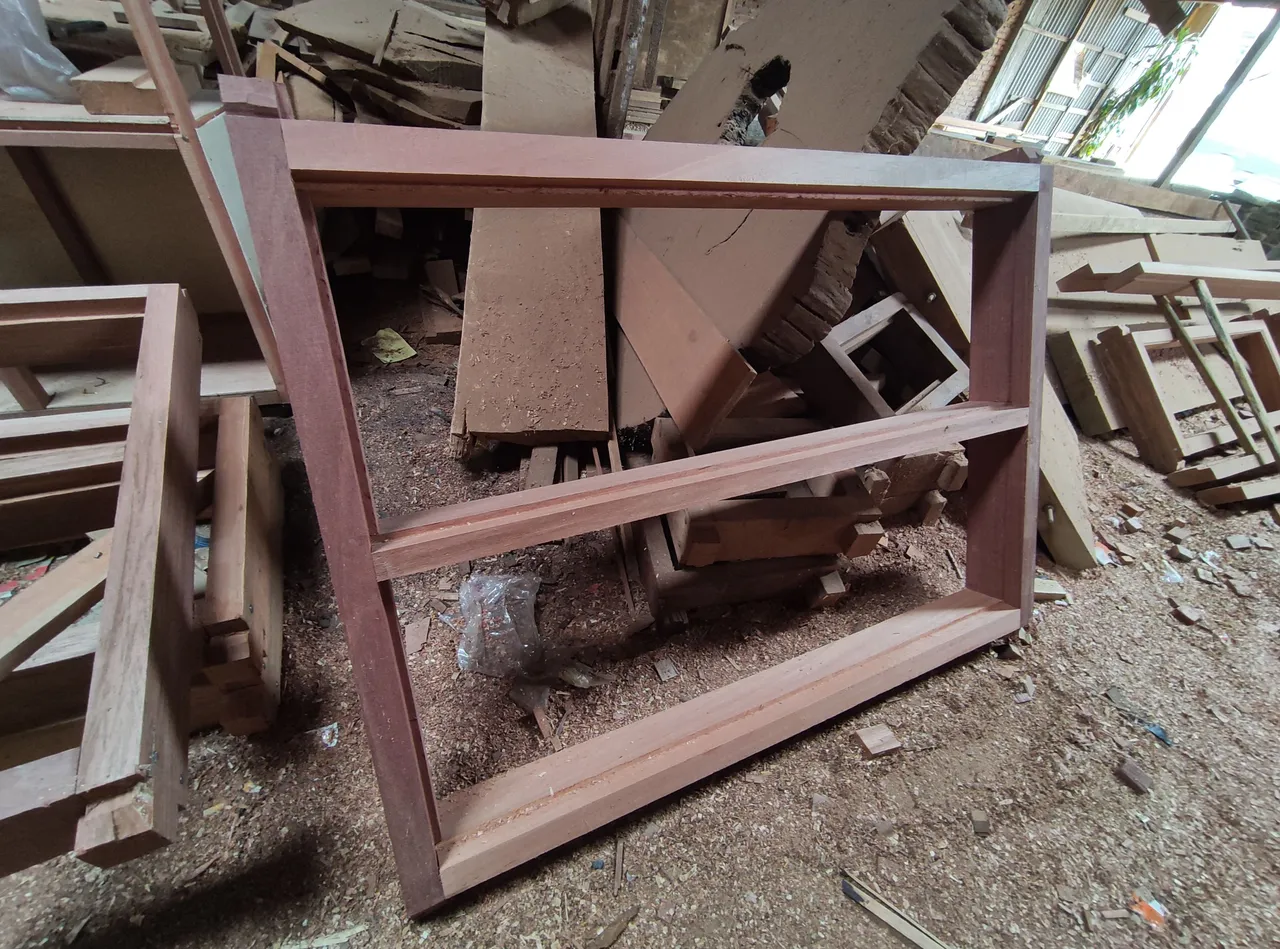

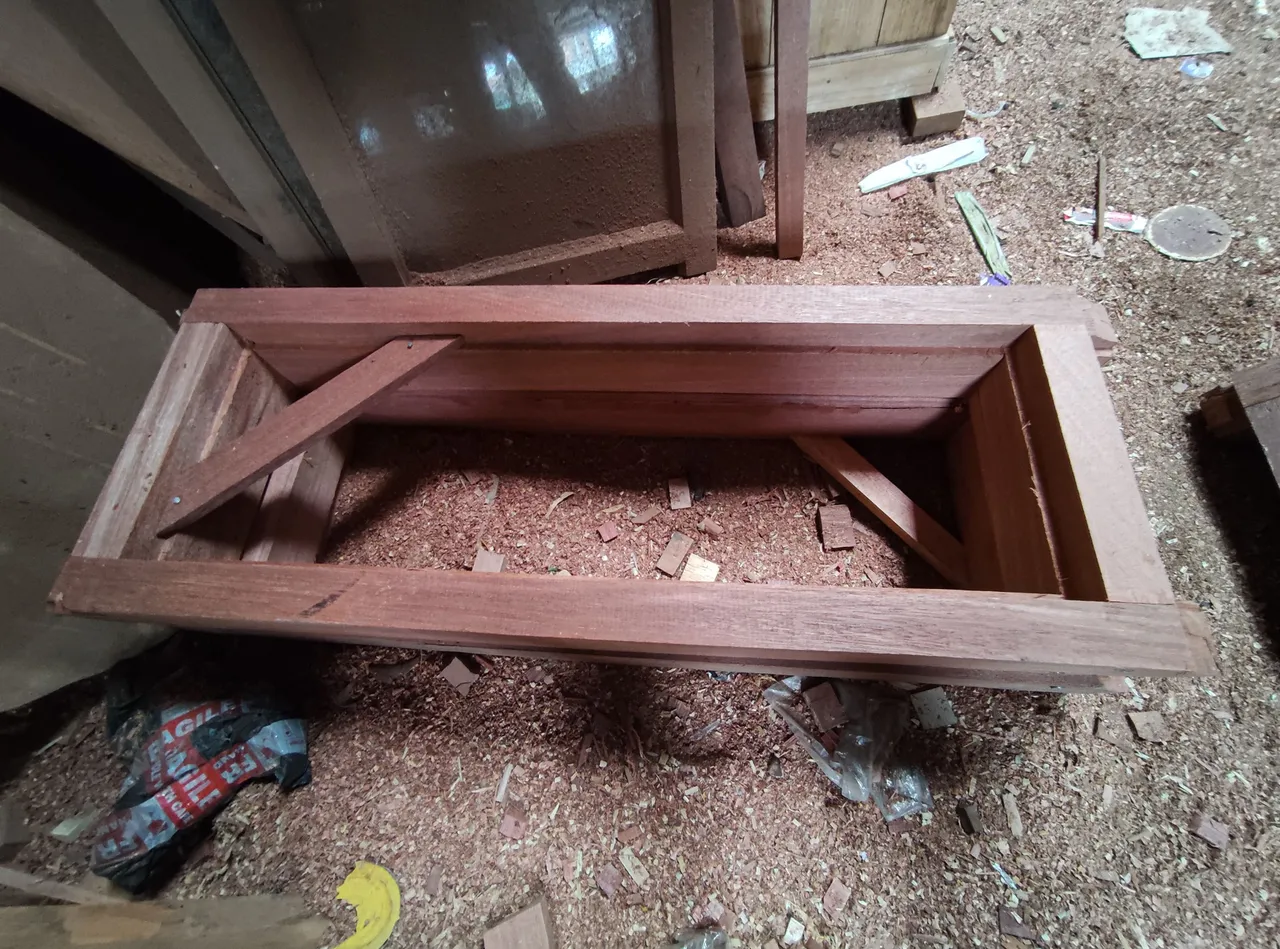

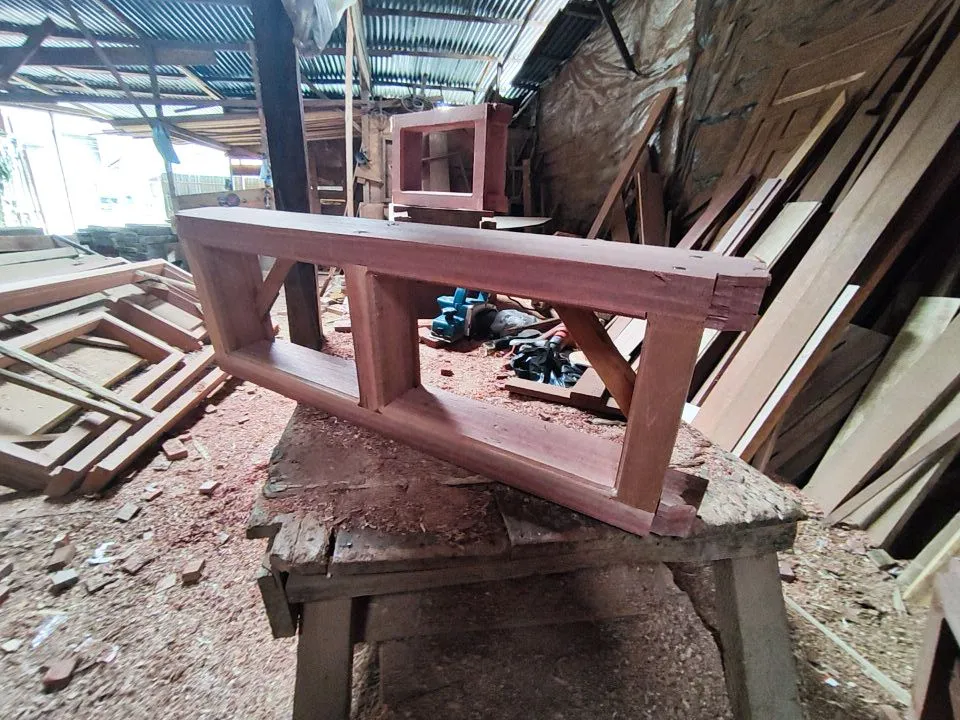

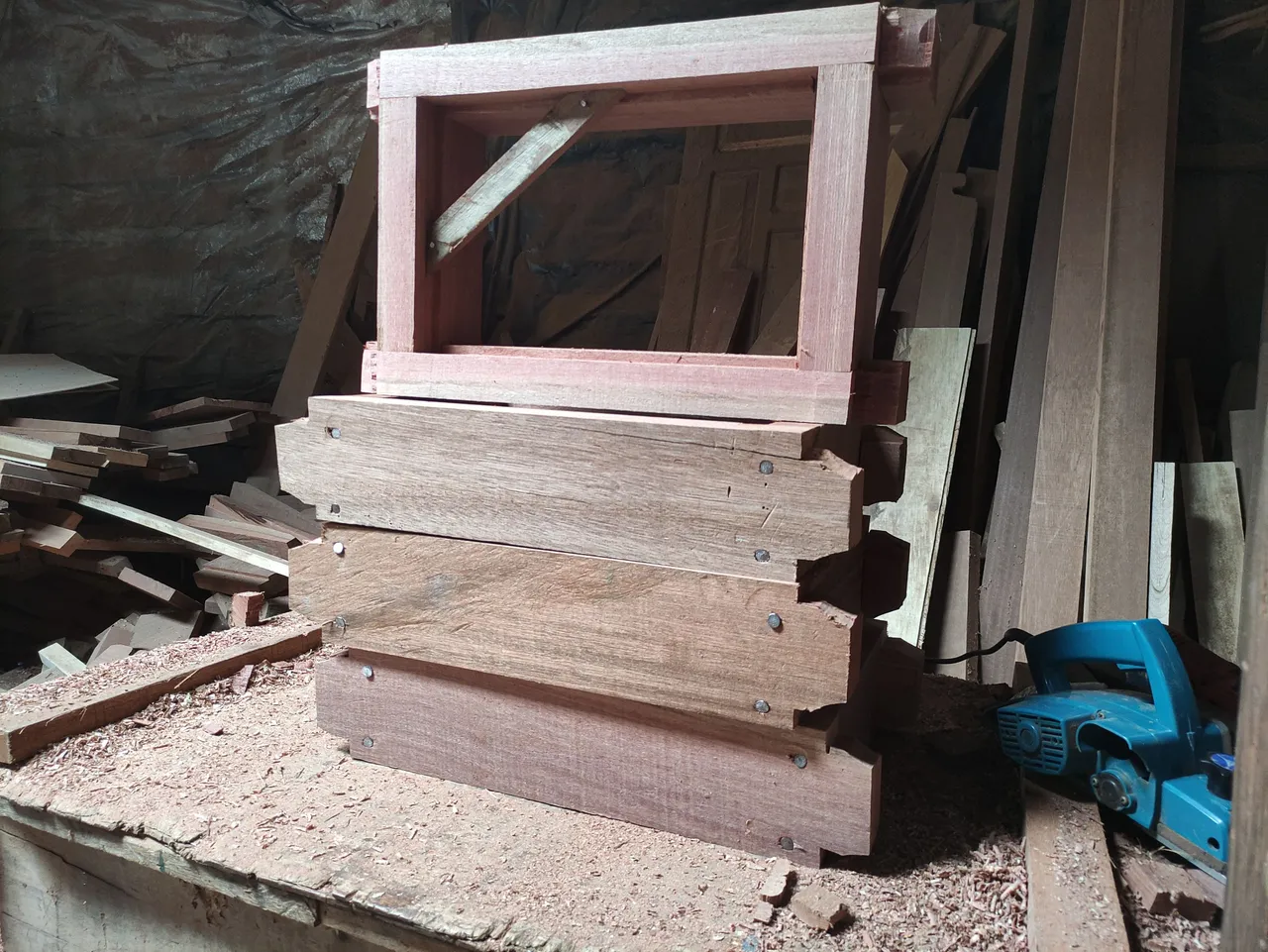

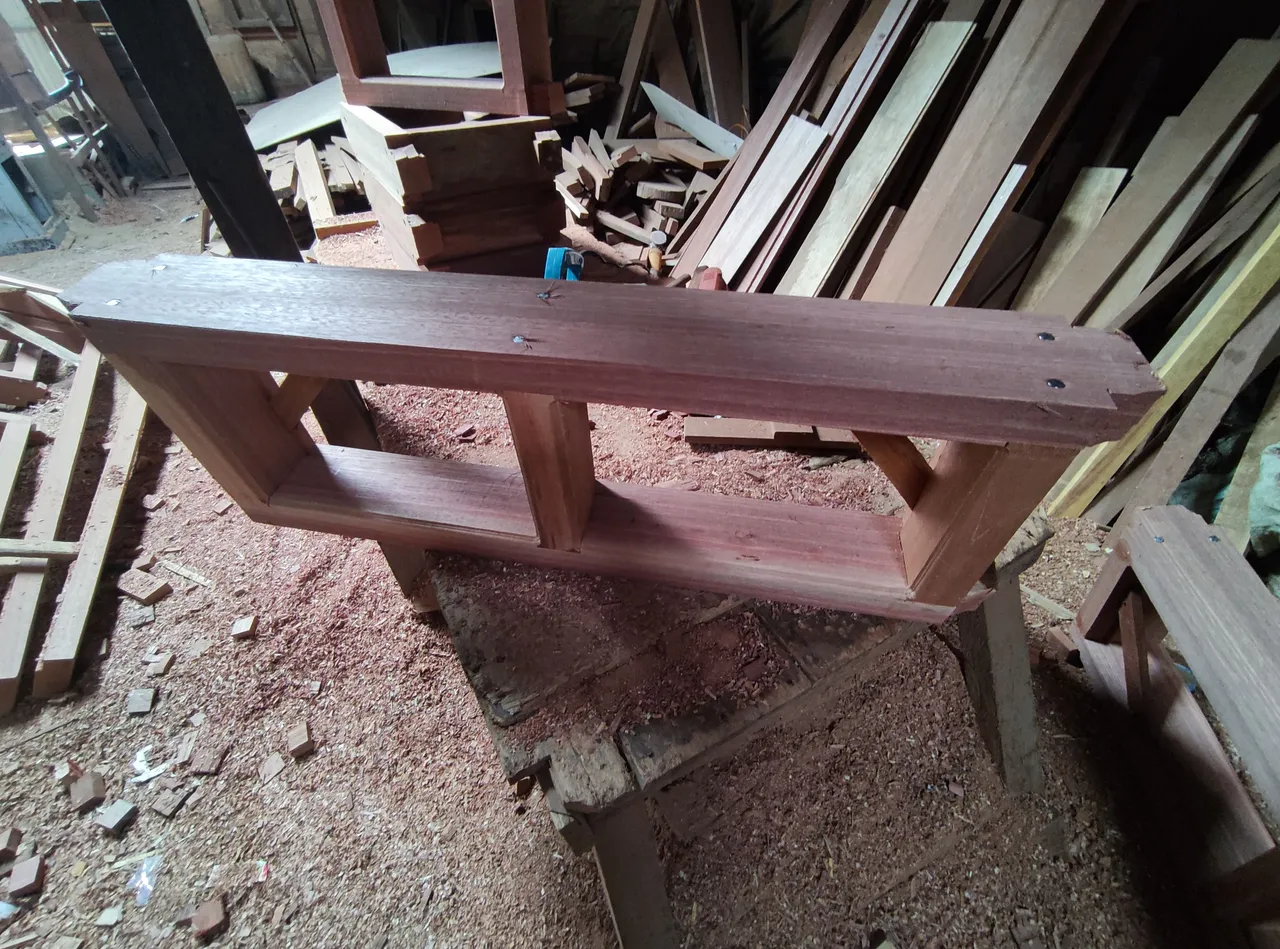

And then here you can see pictures of the results of 4 units of plain window frames with a width of 40cm X 120cm high and also 4 units of the window jalusi frame with a width of 40cm x 25cm high.

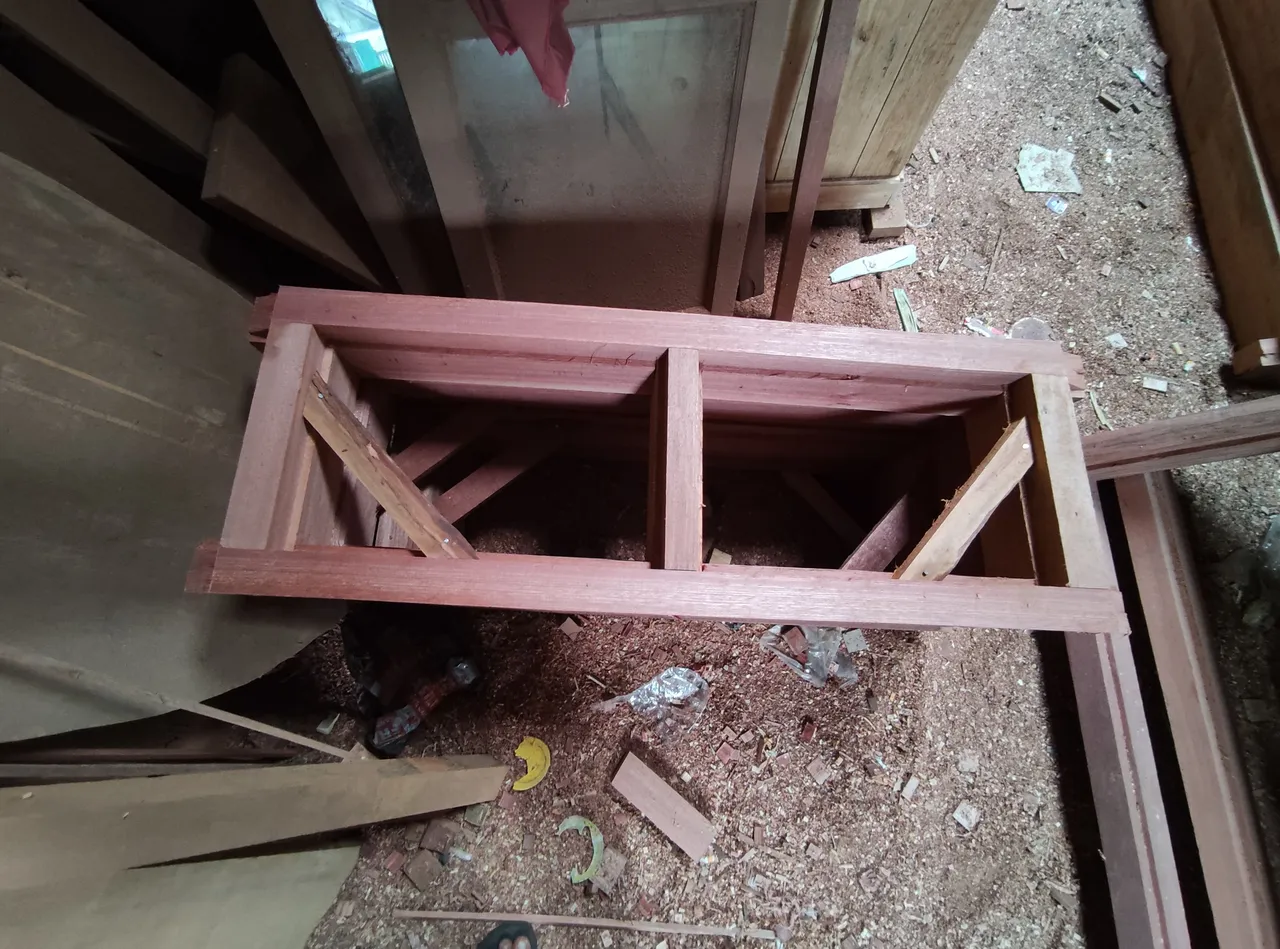

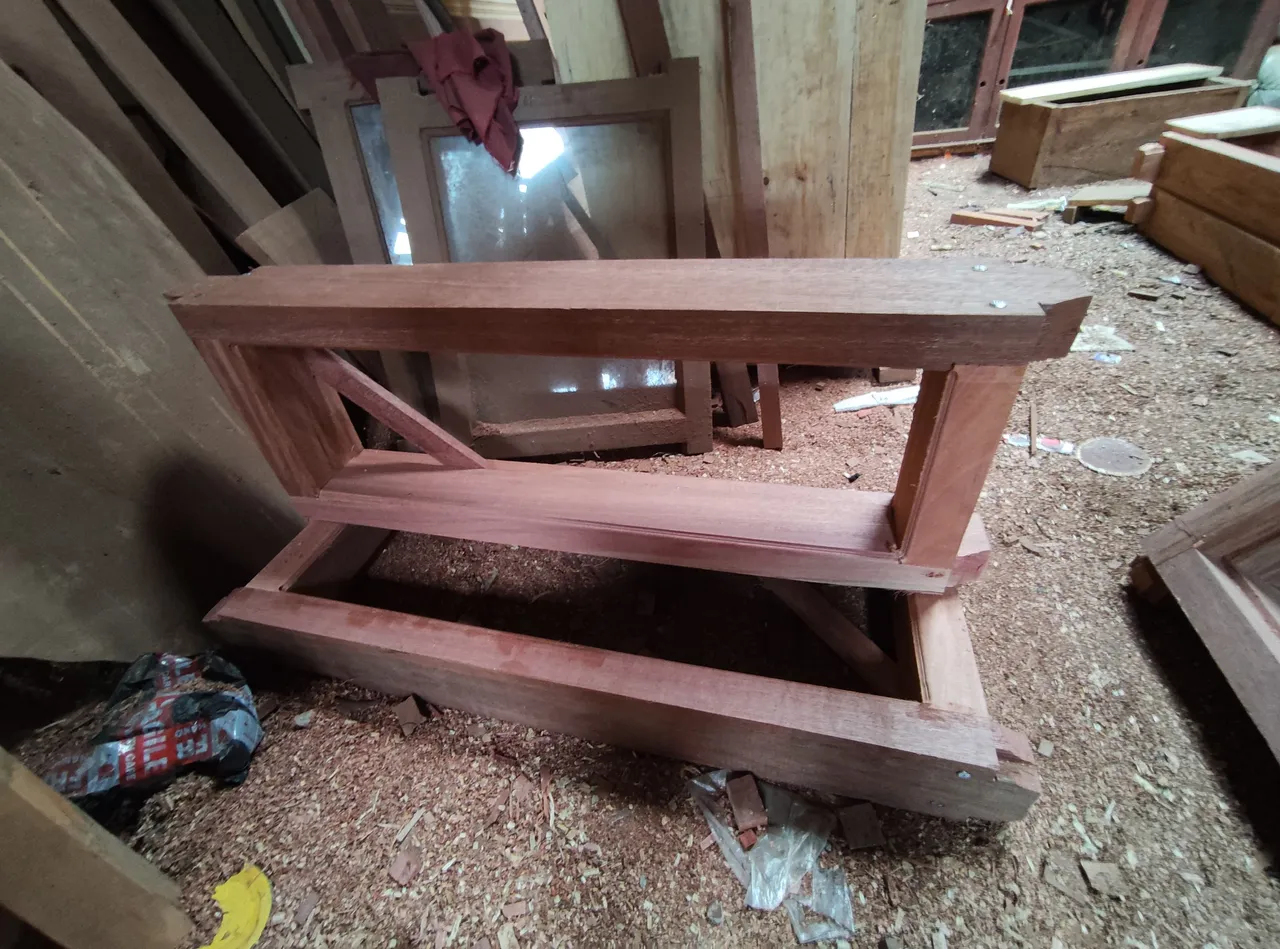

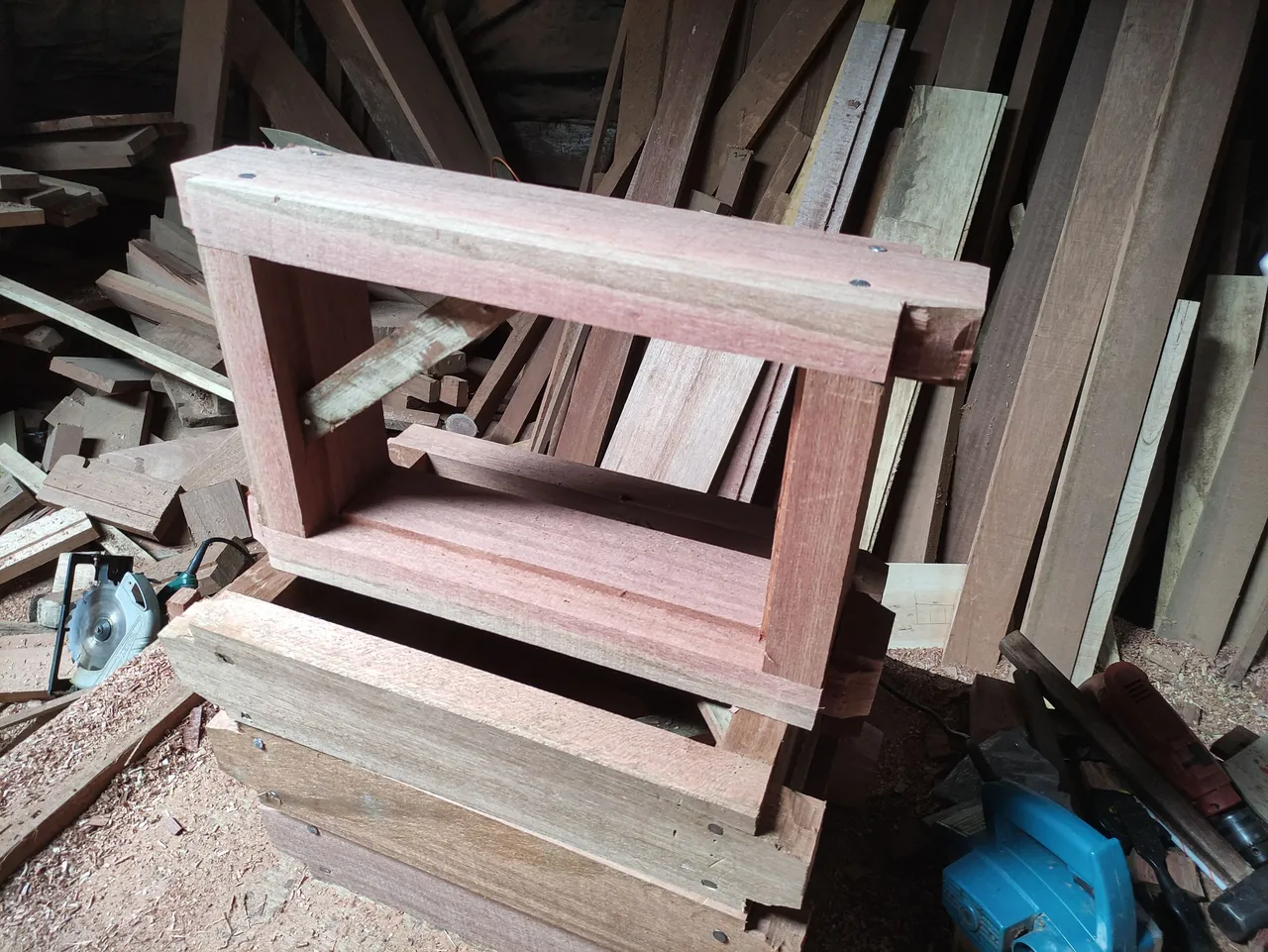

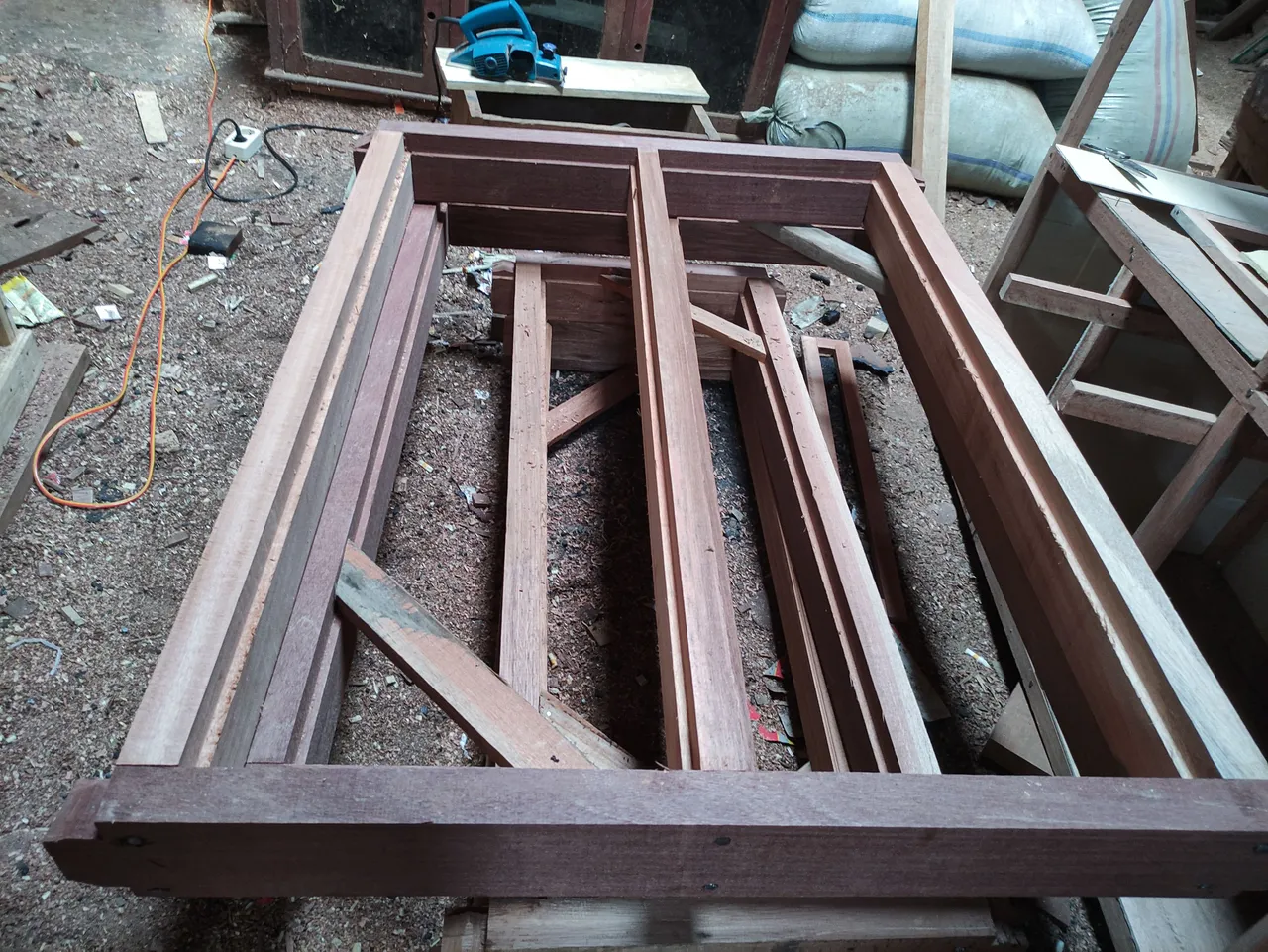

And here is a picture display of 2 units of articulated windows with a width of 40cm X 40cm X height 120cm and also the jalousie of the window measuring 40cm wide X 40cm X high 25cm .
All of these pictures when i was working on that window and jalousie project ,all images were taken using a smartphone camera, if you want to enjoy my previous architectural design works, please visit the post link below.
