Fourier Transform from Signal Graph [Based on 8.1 from Ref1]

Let's consider signal x(t), which is a single triangular pulse of unit height. The pulse is symmetric about the origin and has a total width of T₁.

1. Sketch x(t)
2. Sketch , which is a periodic repetition of x(t) with period T_o = 3T₁ / 2
3. Compute the Fourier Transform of x(t), X(ω). Sketch it for |ω| ≤ 4π / Τ₁
4. Compute the Fourier Series coefficients of , a_k. Sketch for k = 0, ±1, ± 2, ± 3

Solution

a.

The total width of the signal is T₁ and because the signal x(t) is symmetrical it has to be sketched in the range (- T₁ / 2, T₁ / 2). Its amplitude will be 1 at the origin, so the graph is as follows:

b.

The signal is a repetition of x(t) every T_o = 3 T₁ / 2 time units. Because the original signal has a width of T₁, there will be zero amplitude for a total of T₁ / 2 units before and after the signal. Graphically, we thus have:

c.

From the tables, the Fourier Transform of a triangle function, like x(t), is known to be equal to the sinc function squared, or:

Proving this result is quite tedious as integration by parts is needed. A nice proof can be found here

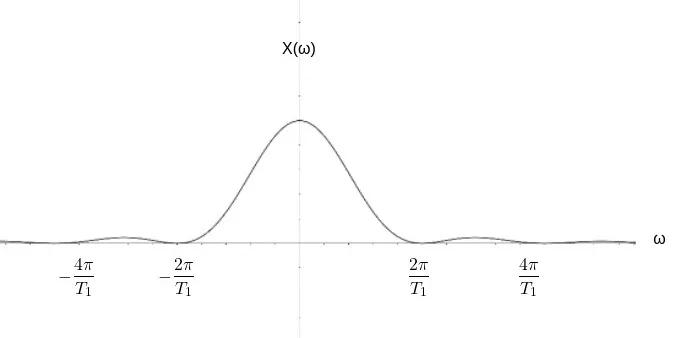

Graphically, the squared sinc function looks like this:

d.

Similar to the Fourier Transform, the Fourier series coefficient is again a squared sinc function, but with a different amplitude.

More specifically, the calculation leads us to:

Graphically, the Fourier series is identical to the Fourier transform in all but the magnitude:

Its also easy to notice that the relation between a_k and X(ω), which is:



is satisfied completely in the case of this example.

---

Fourier Transform from Signal Equation [Based on 8.2 from Ref1]

Consider the following signals:

Let's find the Fourier transform of each of those signals.

Solution

a.

The unit impulse function is one of the common signals. From the table that can be found at Ref2, the generic result for δ(t-a) is:

So, in the case of a = 3, the result is the following complex exponential:

b.

The right-sided decaying exponential is also one of the common signal cases, which is defined as:

For a = 3, the result is as follows:

---

Output of LTI System [Based on 9.7 from Ref1]

The output of a causal LTI system is related to the input x(t) by the following LCCDE:

1. Determine H(ω) = Y(ω) / X(ω)
2. For x(t) = e^-tu(t) determine the Fourier Transform of the output, Y(ω)
3. Using the Inverse Fourier Transform calculate y(t)

Solution

a.

Let's start by taking the Fourier Transform of the LCCDE. The signals x(t) and y(t) are simple as they give X(ω) and Y(ω) respectively. But, in the case of dy(t) / dt, the differentiation property needs to be applied, which as we know yields jωY(ω). Thus, the final result is:

Next, let's take the common term Y(ω):

As such, H(ω) is equal to:

b.

The decaying exponential x(t) is one of the common cases, which gives:

Thus, the Fourier Transform of the output is equal to the multiplication of X(ω) and Y(ω):

c.

The resulting output Y(ω) is a sum of common signals, which makes taking the inverse Fourier transform of it a piece of cake. So, the output y(t) is:

I think its easy to see that using this approach simplified the calculation by quite a bit. From previous examples we already know that calculating h(t) can easily become complicated. And let's also not forget to mention that we all but skip the convolution part, as convolution turns into multiplication in the Frequency Domain.

---
